Keep it cool

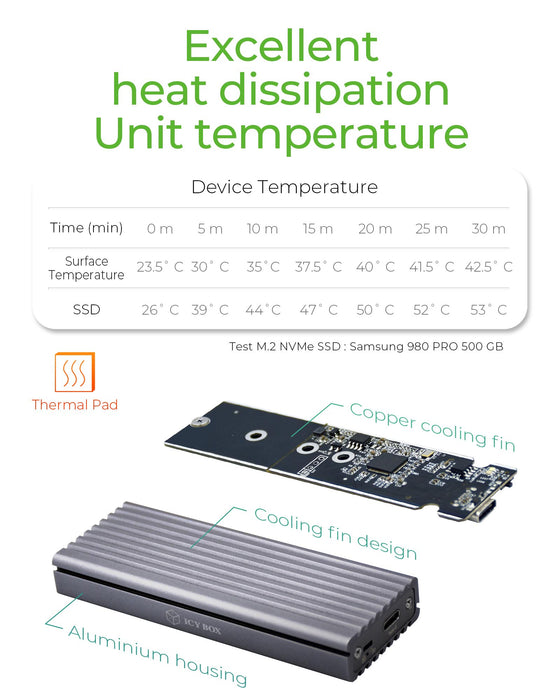

The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.
Time is valuable

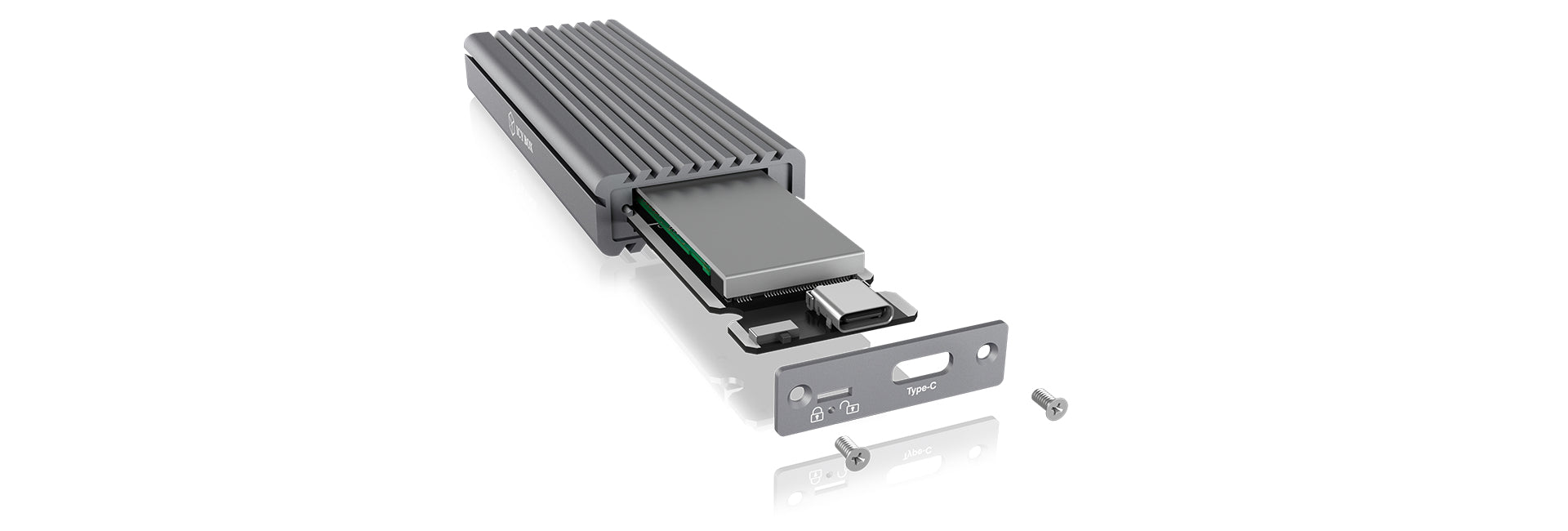

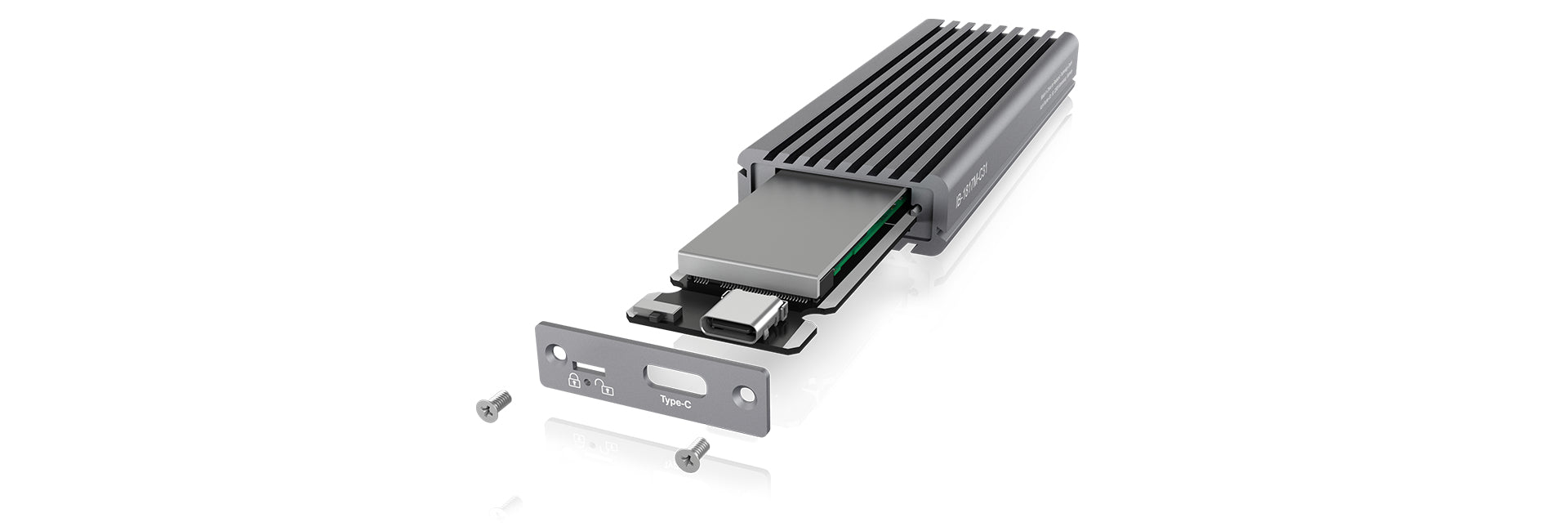

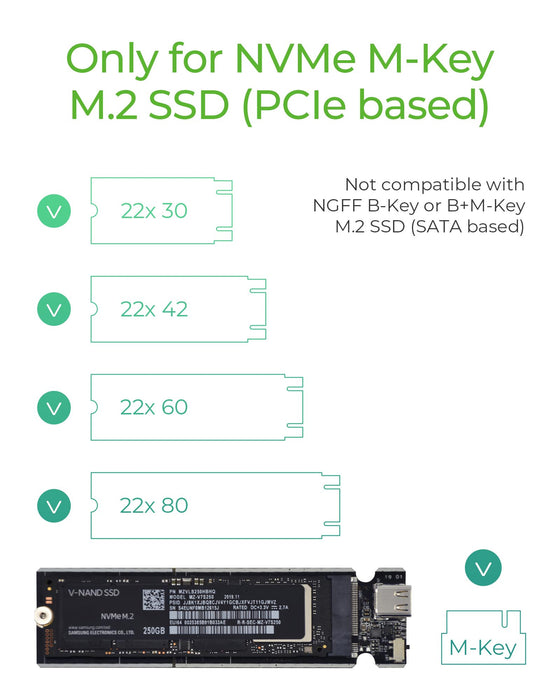

The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.

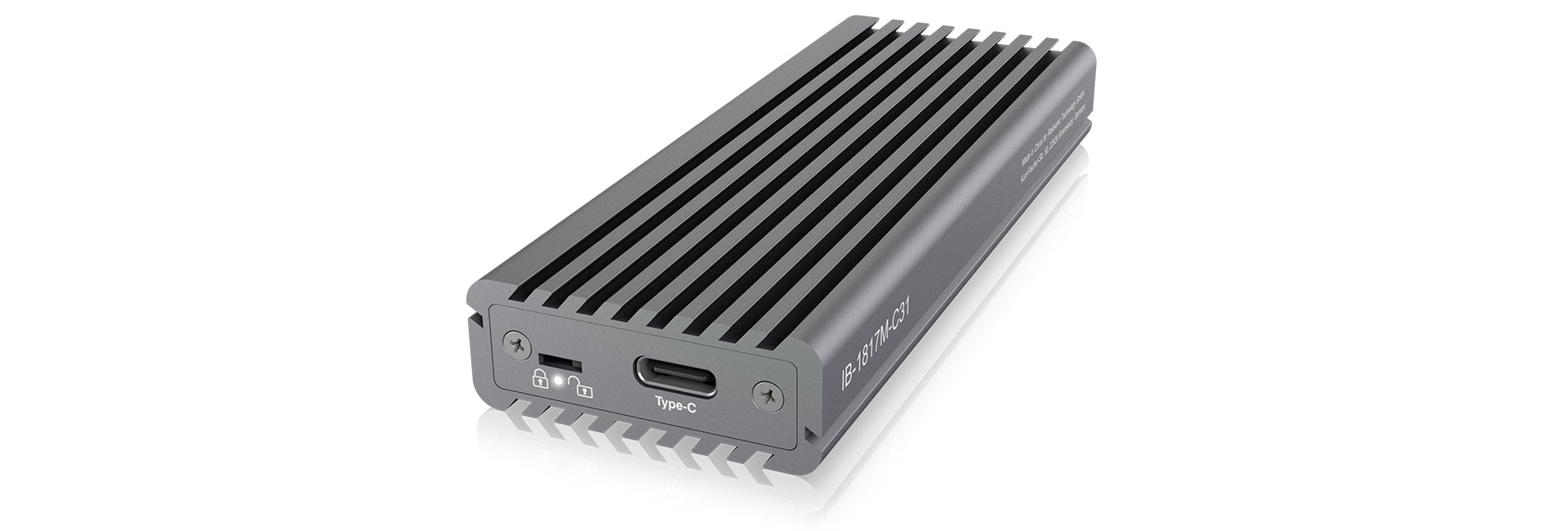

Click - Safe

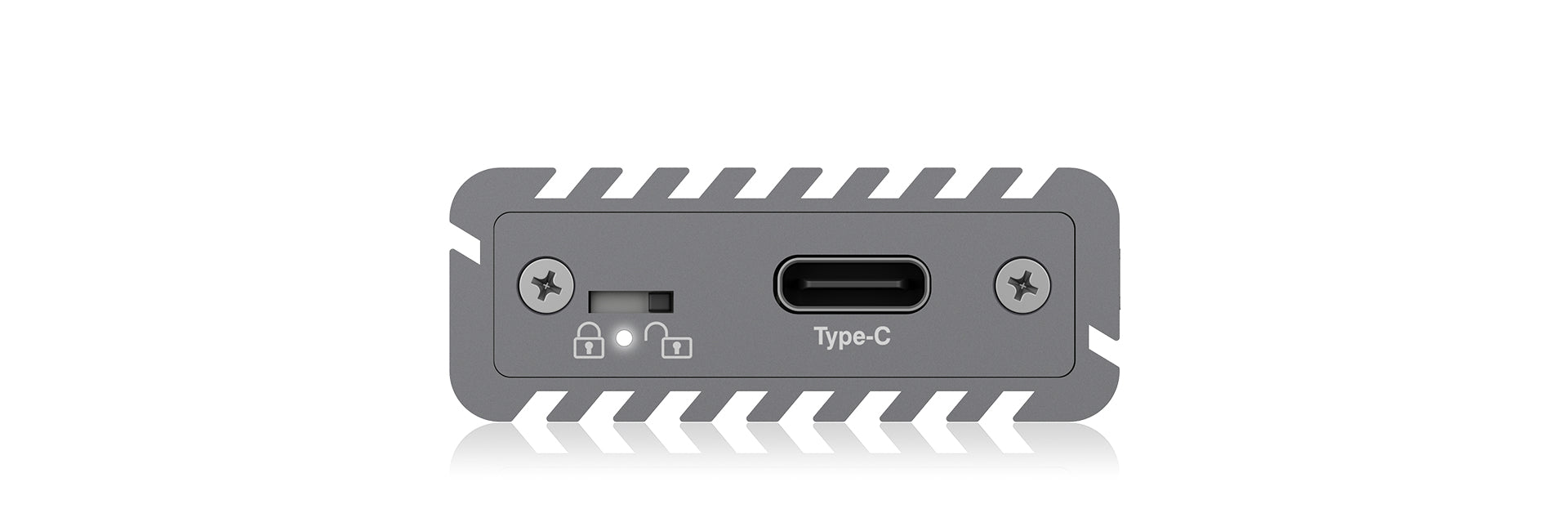

With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.
Storage
Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: PCI Express 3.0
Supported storage drive heights: 22 mm
Supported storage drive lengths: 30,42,60,80 mm
Feature: NVMe
Ports & interfaces
Feature: USB connectivity
USB version: 3.2 Gen 2 (3.1 Gen 2)
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1
Design

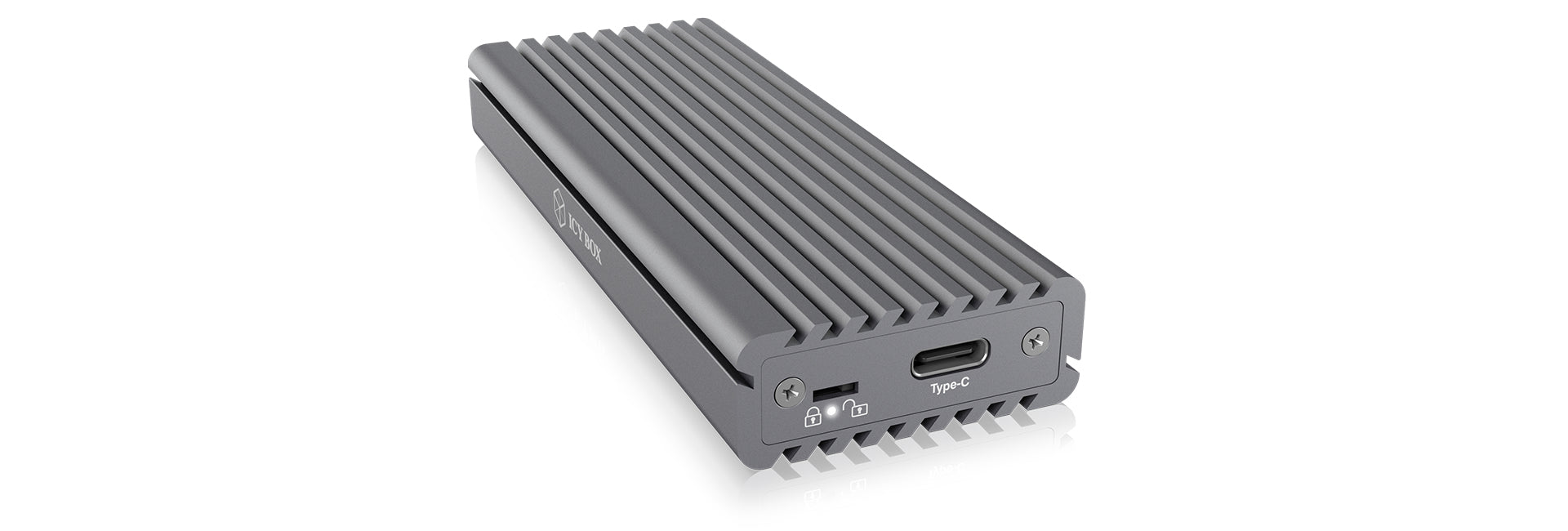

Product type: SSD enclosure
Product colour: Grey

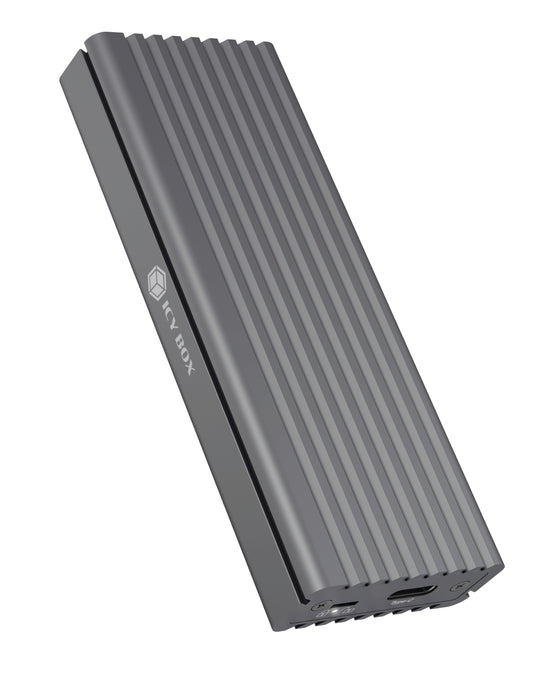

Material: Aluminium
Feature: LED indicators
Performance
Data transfer rate: 10 Gbit/s
Chipset: JMS583
Feature: Plug and Play
Country of origin: Taiwan
Power
Power source type: USB
System requirements
Feature: Windows operating systems supported
Feature: Mac compatibility
Feature: Mac operating systems supported

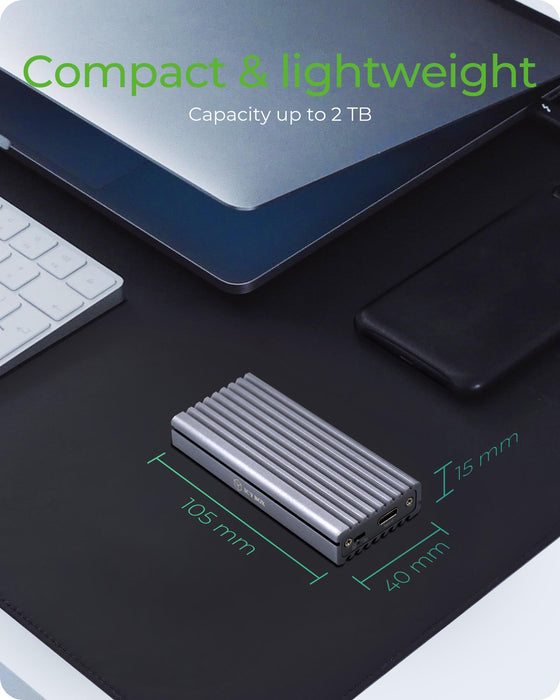

Weight & dimensions
Width: 40 mm
Depth: 105 mm
Height: 15 mm
Weight: 100 g
Cable length: 0.2 m
Package width: 100 mm
Package depth: 25 mm
Package height: 200 mm
Package weight: 217 g
Packaging content
Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Feature: Screws included
Feature: Screwdriver included
Feature: Quick installation guide
Logistics data
Harmonized System (HS) code: 84718000
Products per master (outer) case: 40 pc(s)

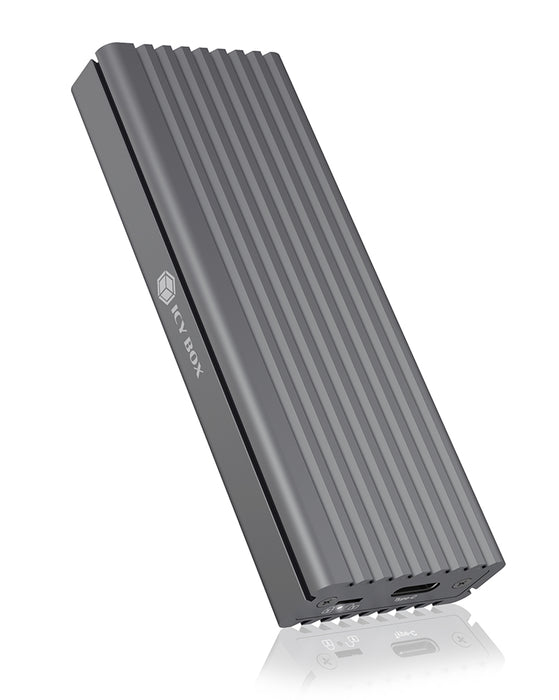

ICY BOX IB-1817M-C31. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: PCI Express 3.0. Data transfer rate: 10 Gbit/s. Product colour: Grey. USB connector type: USB Type-C
ICY BOX
MBR CODE - IB-1817M-C31
EAN - 4250078168911
