Toughpower SFX Platinum series is 80 PLUS Platinum certified and compatible with ATX 3.1 specifications. Designed with a native 12V-2x6 connector.
Power
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 8 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 18 A
Max output current (+12V): 70.83 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 17 ms
Efficiency: 92%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces

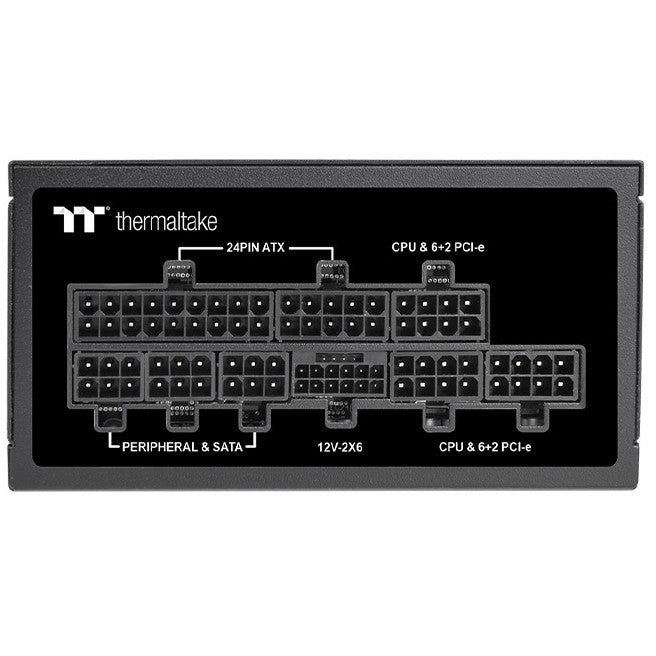

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 30 cm
Number of SATA power connectors: 8
SATA power cable length: 750,600,450,300 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 750,600,450,300 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 40 cm
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: CFX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active

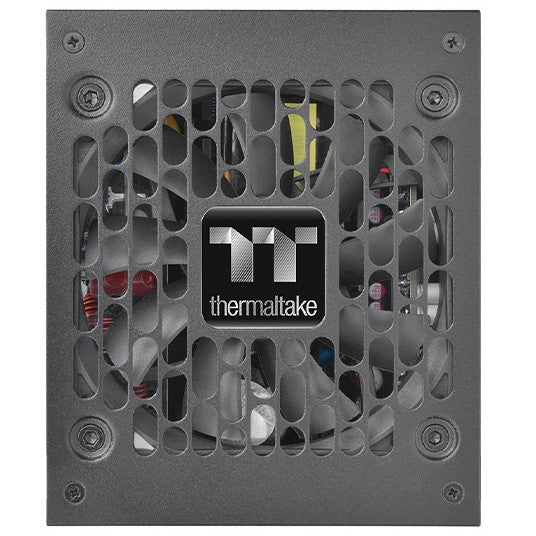

Fan diameter: 9 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -40 - 55 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 10 - 95%
Safety regulation & standards
Safety: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Weight & dimensions
Width: 125 mm
Depth: 103.8 mm
Height: 63.5 mm
Packaging data
Package type: Box

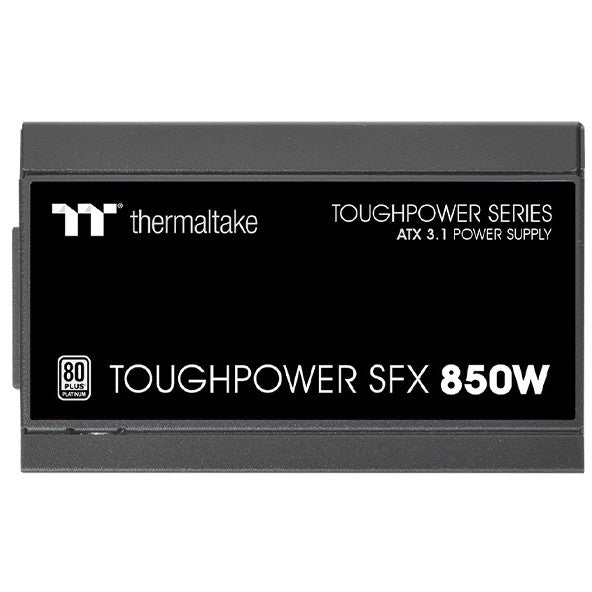

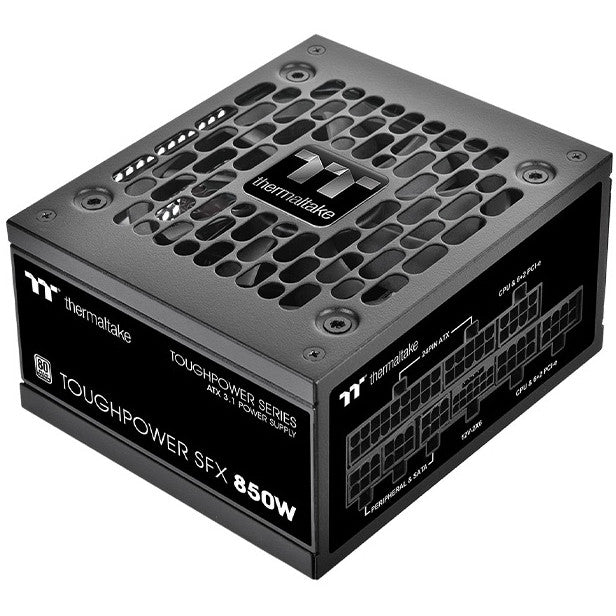

Thermaltake Toughpower SFX Platinum 850W - TT Premium Edition. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 750,600,450,300 mm. Purpose: PC, Power supply unit (PSU) form factor: CFX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 9 cm. Safety: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Thermaltake
MBR CODE - PS-STP-0850FNFAPE-1
EAN - 4711475643505
