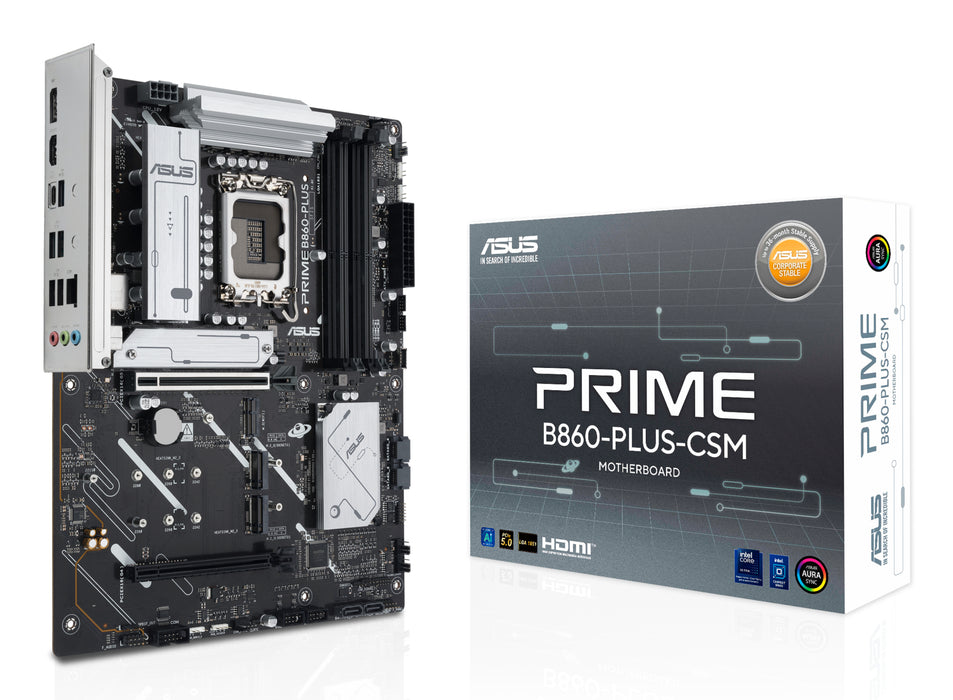

Prime B860-PLUS-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8666 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: S/PDIF out connector
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 4
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector
Thunderbolt headers: 1
Feature: 12V power connector
Feature: RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Line-in
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Features
Motherboard chipset: Intel B860
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 3
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 377 mm
Package depth: 372 mm
Package height: 302 mm
Package weight: 1.56 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 49 mm
Other features
Weight: 896 g
ASUS PRIME B860-PLUS-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
ASUS
MBR CODE - 90MB1KA0-M0EAYC
EAN - 4711387814857
