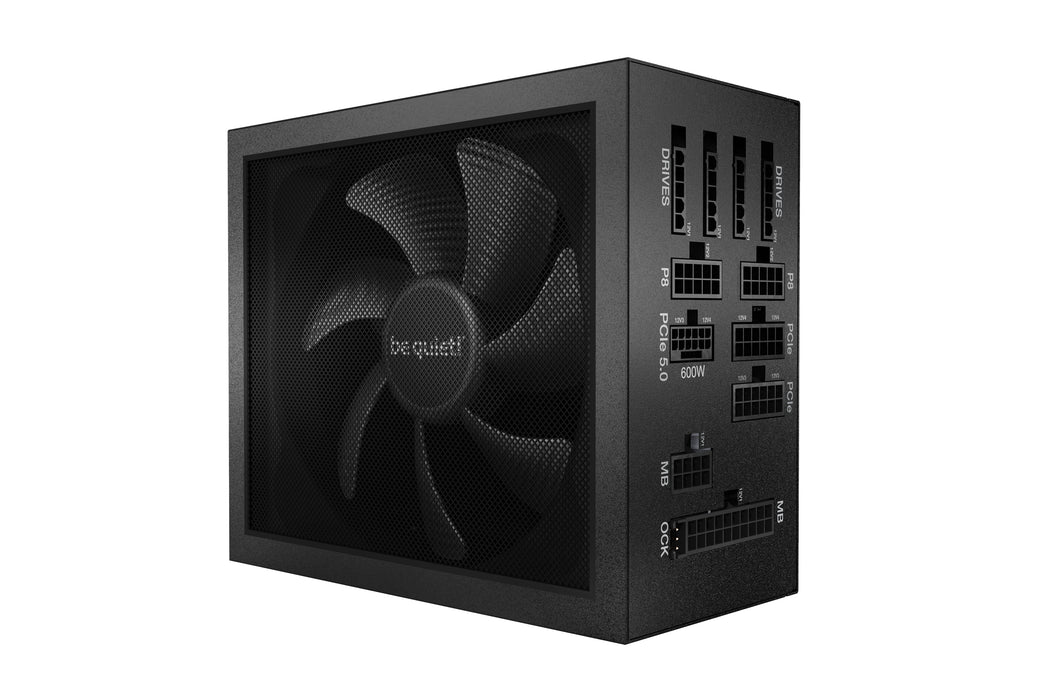

DARK POWER 13 1000W
NO COMPROMISE SILENCE AND PERFORMANCE
The be quiet! Dark Power 13 1000W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power 13 1000W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.2%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power 13 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Dark Power 13 offers 1000W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power 13 1000W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power 13 1000W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.
WORLD CLASS TOPOLOGY
State-of-the-art technology for extremely high efficiency
With an active rectifier and full bridge LLC technology Dark Power 13 1000W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Dark Power 13 1000W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.
HIGHEST CONVENIENCE AND BEST CONNECTIVITY
Modular cables
Modular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases
Power
Total power: 1000 W
Peak power: 1100 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 13/6 A
Maximum input current (@110V): 6 A
Maximum input current (@220V): 13 A
Power factor: 3
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 996 W
Combined power (+5V): 125 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 32 A
Max output current (+12V2): 32 A
Max output current (+12V3): 40 A
Max output current (+12V4): 40 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Hold time: 23.2 ms
Efficiency: 93.3%
Power protection features: Over current, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 13
Number of PATA power connectors: 3
SATA power cable length: 1050 mm
Peripheral (Molex) power connectors (4-pin): 1
PCI Express power connectors (6+2 pin): 4
CPU P4 connector (4-pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Titanium
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
EPS version: 2.92
Feature: Silent mode
Noise level: 25.8 dB
Bearing technology: FDB
Feature: ECC
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 1800 RPM
Fan location: Top
Packaging content
Cables included: DC, SATA
Feature: Cable tie(s) included
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: CCC, CE, RoHS, WEEE
Certification: BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman
Weight & dimensions
Width: 150 mm
Depth: 86 mm
Height: 175 mm
Weight: 2.03 kg
Packaging data
Package width: 120 mm
Package depth: 350 mm
Package height: 270 mm
Package weight: 4.48 kg
Package type: Box
Technical details
Sustainability certificates: ENERGY STAR, ErP
Logistics data
Shipping (inner) case length: 50.4 cm
Shipping (inner) case width: 30.5 cm
Shipping (inner) case height: 36.8 cm
Pallet gross weight (air): 19.3 kg
Warranty period: 10 year(s)
be quiet! Dark Power 13. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: DC, SATA
Be Quiet!
MBR CODE - BN335
EAN - 4260052189405
