PURE WINGS 3
120mm PWM HS 3-Pack
PERFORMANT, PROGRESSIVE, QUIET
Pure Wings 3 120mm PWM high-speed Triple Pack is the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.
INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpm
Pure Wings 3 120mm PWM high-speed Triple Pack features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 120mm PWM high-speed Triple Pack always operates at the desired speed, no matter the resistance.
OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM high-speed Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM high-speed Triple Pack.
FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.41mm/H2O, Pure Wings 3 120mm PWM high-speed Triple Pack is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.
ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 120mm PWM high-speed Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM high-speed Triple Pack a timeless classic and elegant addition to every gaming PC.
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 120mm PWM high-speed Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (max): 2100 RPM
Noise level (high speed): 30.9 dB
Maximum airflow: 59.6 cfm
Airflow: 101.2 m³/h
Maximum air pressure: 2.41 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Rifle bearing
Quantity per pack: 3 pc(s)
Fan's mean time to failure (MTTF): 80000 h
Design
Product colour: Black
Number of fans: 1 fan(s)
Fan connector: 4-pin
Certification: RU
Power
Voltage: 5 - 13.2 V
Rated voltage: 12 V
Fan power consumption: 3.6 W
Fan current: 0.3 A
Weight & dimensions
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Fan weight: 149 g
Cable length: 0.46 m
Package width: 80 mm
Package depth: 132 mm
Package height: 122 mm
Package weight: 506 g
Technical details
Sustainability certificates: Triman
Warranty period: 3 year(s)
Compliance certificates: CE, RoHS, UKCA, WEEE

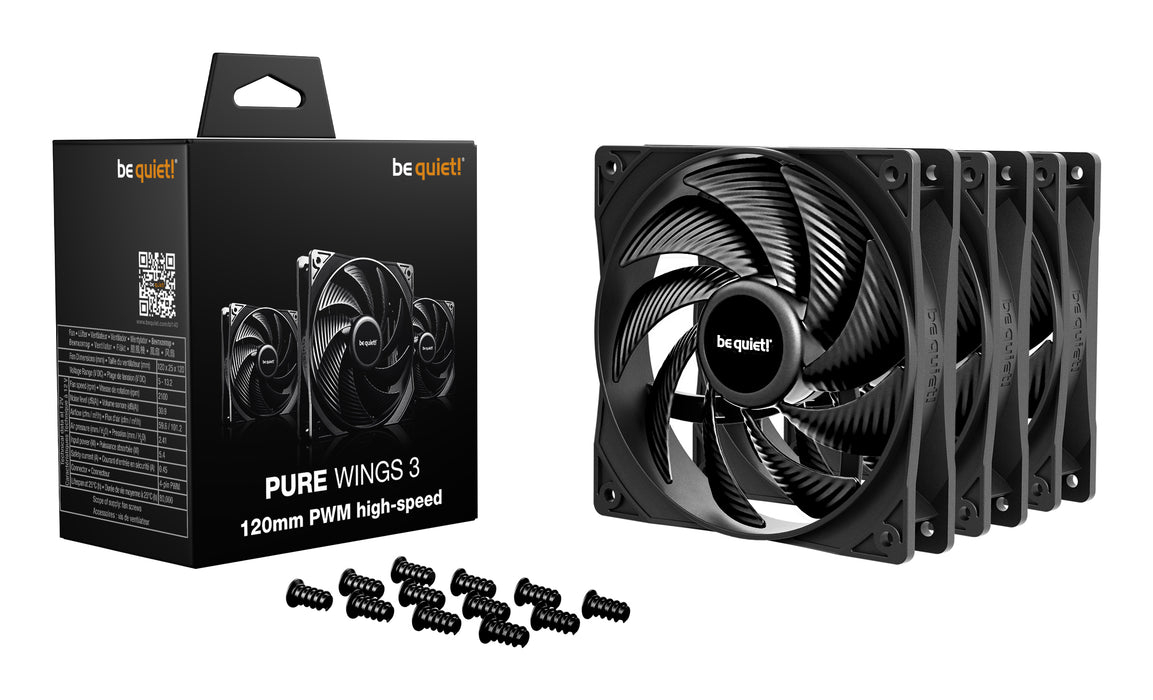

Packaging content
Package type: Hanging box
Feature: Screws included
Logistics data
Products per shipping (inner) case: 20 pc(s)
Shipping (inner) case width: 35.5 cm
Shipping (inner) case length: 42.7 cm
Shipping (inner) case height: 33 cm
Shipping (inner) case gross weight: 10.6 kg
be quiet! Pure Wings 3 120 mm PWM high-speed Triple Pack. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 2100 RPM, Airflow: 101.2 m³/h, Maximum air pressure: 2.41 mmH2O, Bearing type: Rifle bearing. Voltage: 5 - 13.2 V. Product colour: Black
Be Quiet!
MBR CODE - BL140
EAN - 4260052193860
