Excellent silence and usability
be quiet! Silent Base 601 Window Black delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.
NOISE DAMPENING VENTS
Minimize noise and maximize airstream
The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.
SUPERB NOISE DAMPENING
Extra thick insulation for maximum stability and silence
The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

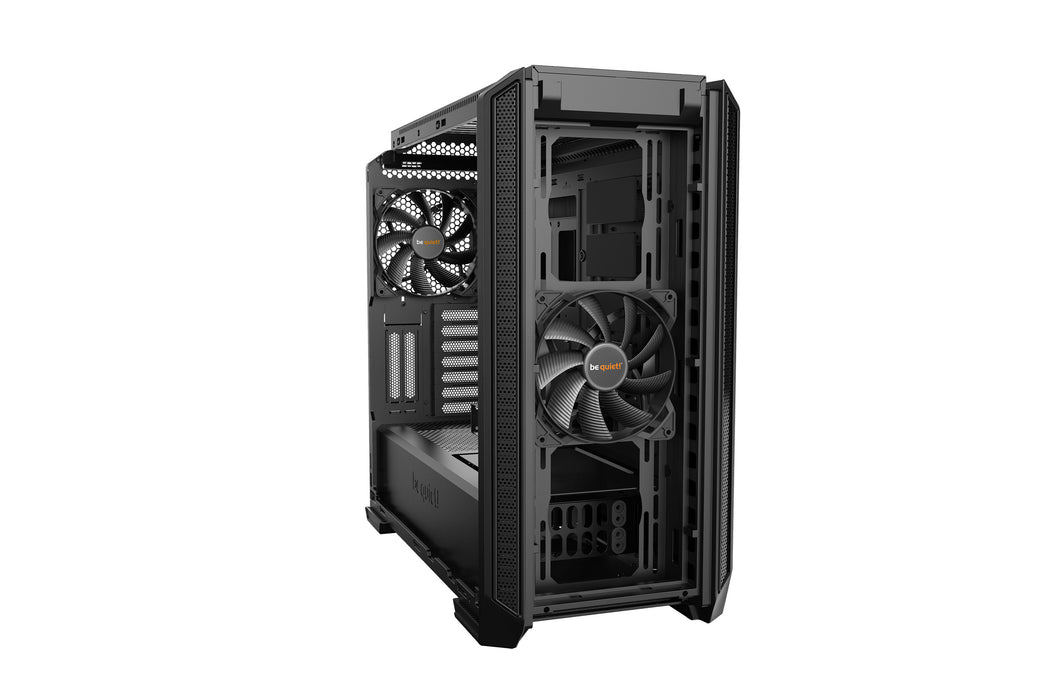

PRE-INSTALLED PURE WINGS 2
Whisper-quiet operation
Two pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to three fans.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.
CONVENIENT TO HANDLE
Easy access for all kinds of modifications
The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.
GENEROUS SPACE, SMART DESIGN
Designed for all kinds of high-end hardware
Despite its compact design the Silent Base 601 Window provides generous dimensions and cutouts even for installing an E-ATX motherboard. The smart arrangement of components also allows multiple graphics cards and large coolers to fit in well.
EASY INSTALLATION OF RADIATORS
Optimized for water-cooled systems
With its optimized design Silent Base 601 Window is the perfect case for water cooling. Radiators of up to 360mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.

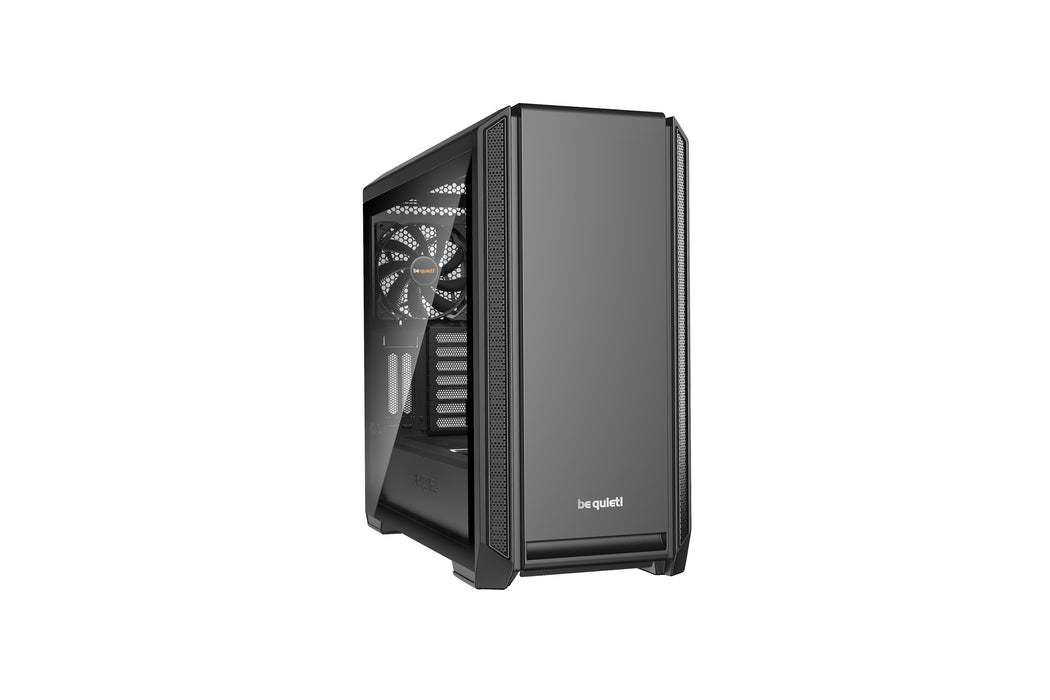

GLASS WINDOW
A perfect view inside your PC
The elegant, windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Design
Material: Acrylonitrile butadiene styrene (ABS), SECC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 3
Number of 2.5" bays: 6
Number of expansion slots: 9
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
LED indicators: HDD
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 44.9 cm
Maximum PSU length: 28.8 cm
Certification: CE, RoHS
Power supply
Supported power supply form factors: ATX, PS2
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 1x 140 mm
Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Maximum airflow: 61.2 cfm
Noise level (high speed): 18.8 dB
Fan rated current: 0.12 A
Fan power consumption: 1.44 W
Front radiator sizes supported: 120,140,240,280,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,240,360 mm
Storage
Supported HDD sizes: 2.5,3.5"

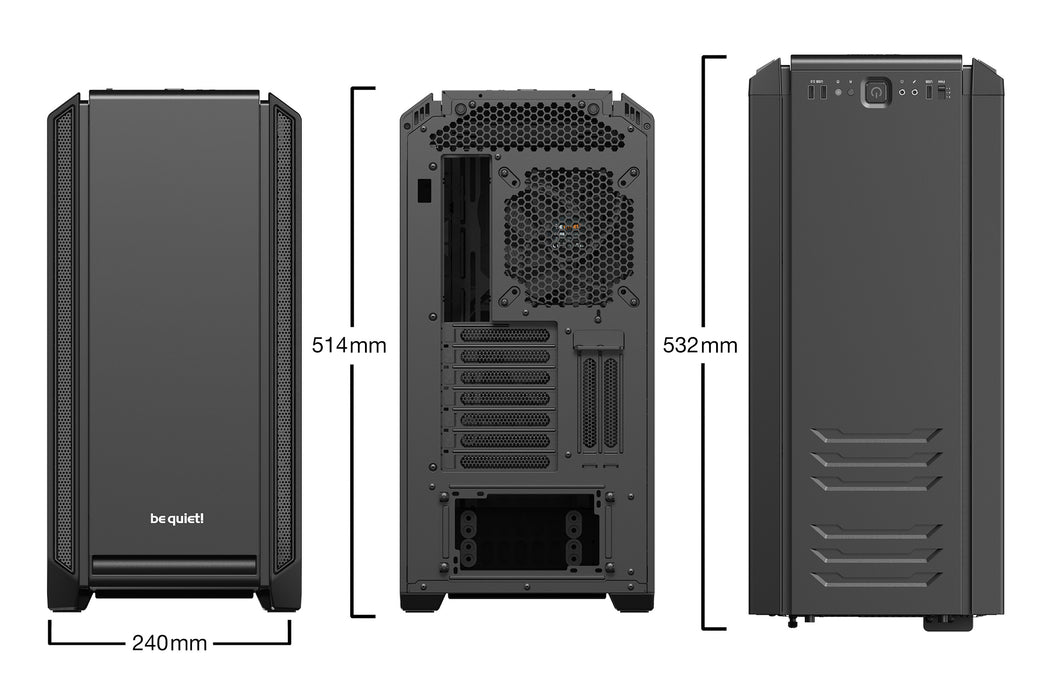

Weight & dimensions
Width: 240 mm
Depth: 532 mm
Height: 514 mm
Weight: 11.2 kg
Packaging data
Package width: 325 mm
Package depth: 566 mm
Package height: 615 mm
Package weight: 13.2 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Tempered glass panel thickness: 4 mm
Fan connector: 3-pin
be quiet! Silent Base 601 Window. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 240 mm, Depth: 532 mm, Height: 514 mm
Be Quiet!
MBR CODE - BGW26
EAN - 4260052187036
