Complies with Intel® Power Design Guide ATX 3.1
ADVAN GM series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.
LLC Resonant-converter Topology with Synchronous Rectifier
Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS ® and Cybenetics gold certified for lower power loss, less heat, and quieter operation.
ECO Switch with ZERO RPM Silent Operation
Activating the eco semi-fanless fan control switch, when the PSU operates at less than 40% capacity, will ensure the fan does not run, resulting in silent operation.
120 mm Hydraulic Bearing (HYB) Fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
The Force Comes with You
Dual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
Powerhouse Single +12V Rail
This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.
105°C Japanese Bulk Capacitor
Maximize reliability and performance by using top-quality Japanese electrolytic capacitors for a longer lifespan.
Premium, Black Embossed Cables
Featuring improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
Power
Total power: 750 W
AC input voltage: 100 - 240 V
Input current: 5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 750 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 70 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HYB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm

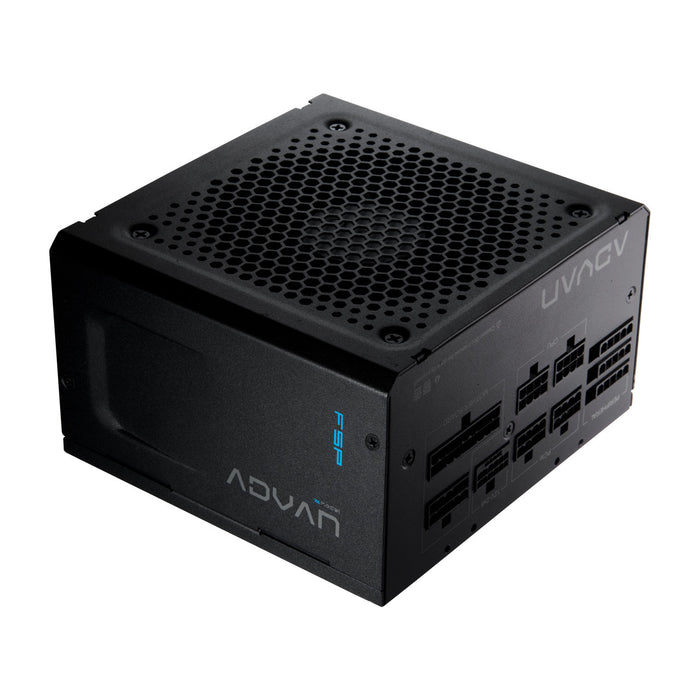

FSP ADVAN-750GM. Total power: 750 W, AC input voltage: 100 - 240 V, Input current: 5 A. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power cable length: 70 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
FSP
MBR CODE - PPA7508300
EAN - 4711498480774
