Functionality you need, at the price you want
A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.
Display
Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Display diagonal: 81.3 cm (32")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 400 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 9 ms
Contrast ratio (typical): 1100:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.364 x 0.364 mm
Active display area (W x H): 698 x 393 mm
Display diagonal (metric): 80 cm
Horizontal scan range: 15 - 136 kHz
Vertical scan range: 24 - 75 Hz
Native refresh rate: 60 Hz
Haze rate: 28%
Ports & interfaces
HDMI ports quantity: 6
HDMI input ports quantity: 3
HDMI output ports quantity: 3
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
USB connector type: USB Type-C
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 100 Mbit/s
Audio (L/R) out: 1
Feature: PC Audio in
Number of speaker outputs: 1
Feature: RS-232 interface
Remote (IR) input: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel width (bottom): 1.39 cm
Bezel width (side): 1.25 cm
Bezel width (top): 1.25 cm
Performance
Purpose: Universal
Feature: Ambient light sensor
Operating hours (hours/days): 16/7
Power
Power consumption (typical): 33 W
Power consumption (standby): 2 W
Input voltage: 100-240 V
Energy efficiency class (SDR): F
Energy efficiency class (HDR): E
Energy consumption (SDR) per 1000 hours: 27 kWh
Energy consumption (HDR) per 1000 hours: 27 kWh
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Video formats supported: MP4, MPG, TS
Audio formats supported: MP3
Image formats supported: JPG
Weight & dimensions
Display width: 726.6 mm
Display depth: 67.1 mm
Display height: 422.3 mm
Display weight: 5.3 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%
Storage temperature (T-T): -10 - 60 °C
Storage relative humidity (H-H): 5 - 85%

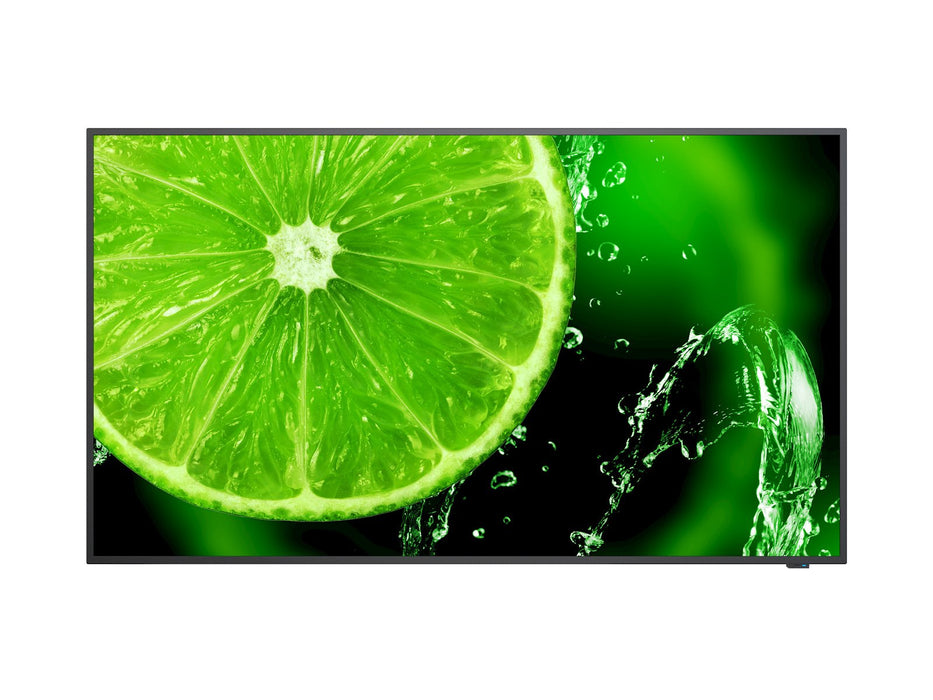

NEC MultiSync E328-2. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD. Operating hours (hours/days): 16/7. Product colour: Black
SHARP NEC
MBR CODE - 60006113
EAN - 5028695127579
