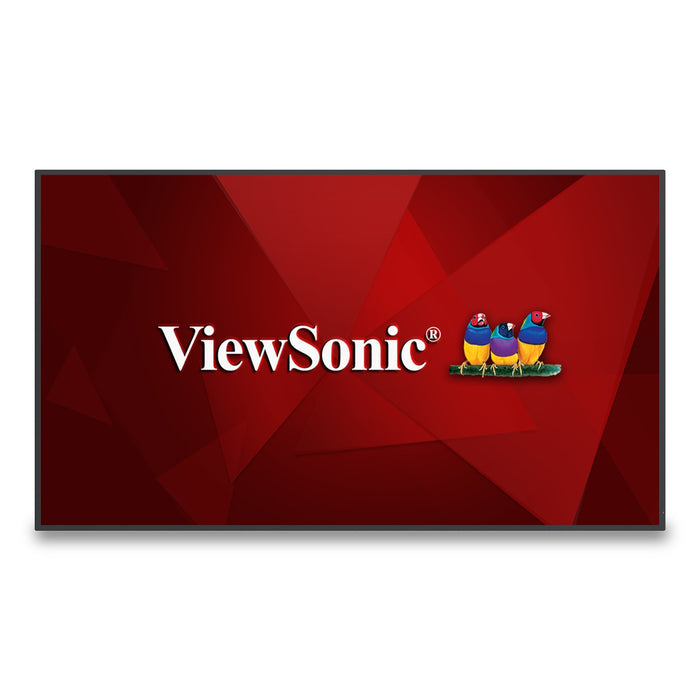

Streamline your presentations, enhance collaboration, and succeed with the ViewSonic CDE6530 digital display. Whether your employees are in office or working remotely, they will enjoy fast and easy ways to communicate thanks to ViewBoard Cast™ screen sharing software and the myViewBoard® Display app that allows up to four participants to connect and share content. For maximum visibility even in rooms with high ambient light, these displays offer stunning 4K Ultra HD resolution, high brightness and a 25% high haze anti-glare screen. What’s more, these all-in-one displays simplify installation and maintenance thanks to a powerful secured embedded platform that delivers smooth content playback without the need for a PC or media player.
Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Flexible Installation
With landscape or portrait mode options, a uniform bezel width, HDMI in and HDMI out for up to 9-screen tiling (ex 1x2, 2x2, 3x2, 4x2, 3x3, 1x9, etc.) without an external HDMI matrix, this display delivers versatile video wall configuration out-of-the-box.
Advanced Multi-Source Capability
Picture in Picture (PiP) and Picture by Picture (PBP) options allow up to two independent sources to run at the same time.
Integrated Content Management System
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
Display
Panel type: ADS
LED backlighting type: Direct-LED
Display diagonal: 165.1 cm (65")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 40000 h
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 3H
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.1
HDMI input ports quantity: 2
HDMI output ports quantity: 1
Feature: USB port
USB ports quantity: 3
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: Mini-USB A, USB Type-C
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Feature: RS-232 interface
Feature: OPS module slot
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.5 cm
Bezel width (side): 1.5 cm
Bezel width (top): 1.5 cm
Feature: Anti-glare screen
Mounting type: Wall
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 165 W
Power consumption (standby): 0.5 W
Power consumption (max): 335 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor frequency: 1.5 GHz
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Weight & dimensions
Display width: 1463.3 mm
Display depth: 81.6 mm
Display height: 838.3 mm
Display weight: 25.4 kg
Weight: 25.4 kg
Packaging data
Package width: 1628 mm
Package depth: 208 mm
Package height: 942 mm
Package weight: 33.2 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI, RS-232, USB Type-C
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Certificates
Certification: cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
Logistics data
Products per master (outer) case: 5 pc(s)
Pallet gross length: 114 cm
Pallet gross width: 168 cm
Pallet gross height: 107.1 cm
Harmonized System (HS) code: 8528521000
Technical details
OPS slot: 1
Other features
Feature: Quick start guide
Viewsonic CDE6530. Product design: Digital signage flat panel. Display diagonal: 165.1 cm (65"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Viewsonic
MBR CODE - CDE6530
EAN - 0766907017489
