SEE INTRICATE DETAILS IN 4K

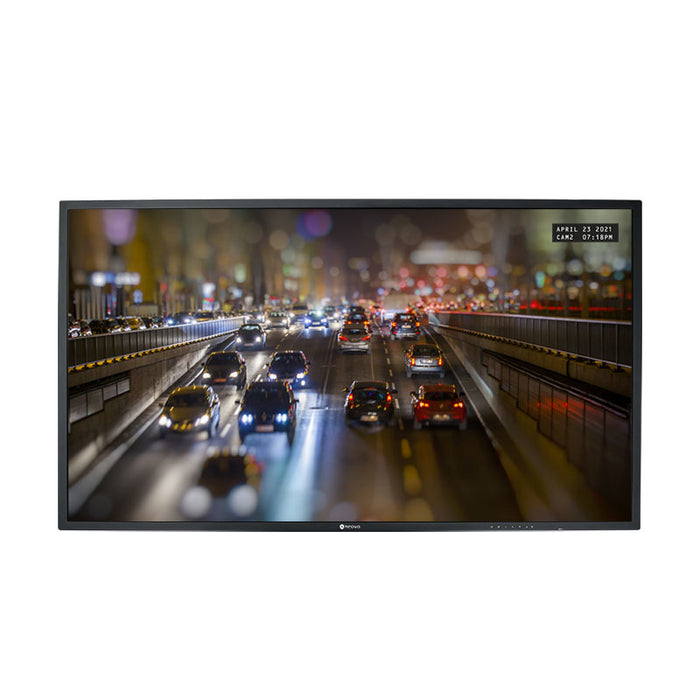

The SMQ-6501 features 3840 x 2160 pixels, offering finer video footage. The high resolution enables zoom-in with clear detail as CCTV evidence. As a result, the operator can zoom in on a license plate number or the lines on a face. Furthermore, the panel enables the operator to view smooth 4K video and graphics with a new level of detail and clarity.
METAL CASING ENSURES RELIABLE MONITORING

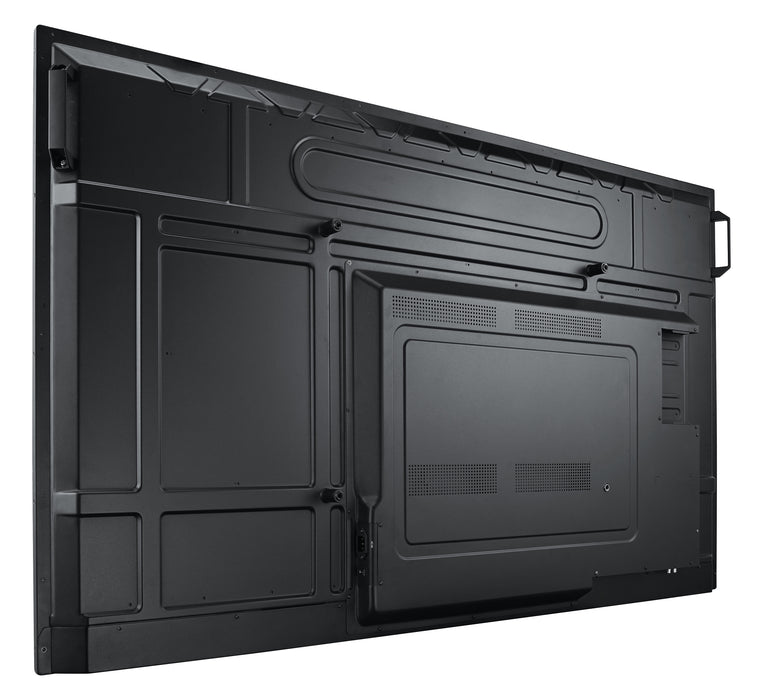

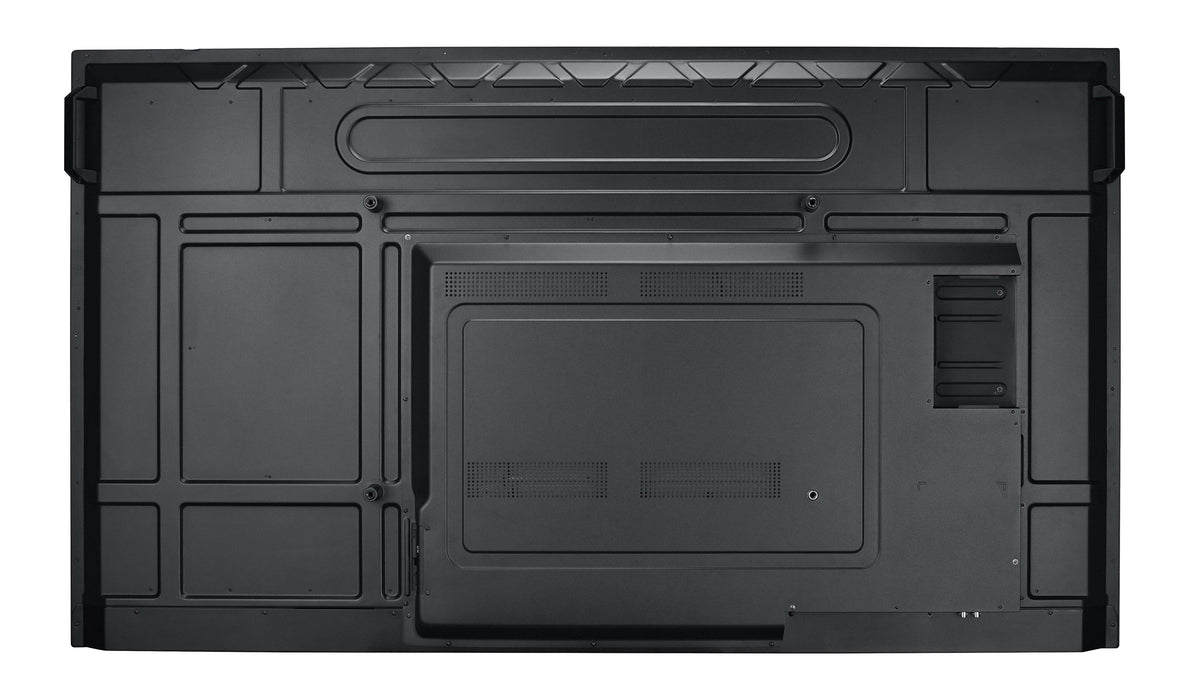

The outer metal case provides enhanced heat dissipation, offering a high level of strength and durability. In turn, this improves the cooling performance to ensure 24/7 proper operation.
TAILOR-MADE FOR RELIABILITY
The SMQ-6501 security display adopts a commercial-grade panel and incorporates high-quality components to ensure 24/7 continuous operations. Furthermore, the patented Anti-burn-in™ Technology adds another protection level in mission-critical environments.
FINE-TUNE CCTV IMAGES FOR MAXIMUM CLARITY AND DETAIL
A special pre-configured CCTV Mode maximizes image clarity in low-light footage. You can make granular adjustments and quickly fine-tune your video footage with sharpness, saturation, contrast, brightness, and more. As a result, you don’t need to waste time constantly testing and re-adjusting because the SMQ-6501 already has it all figured out!
ENHANCED GAMMA SELECTION
Offering an enhanced gamma selection makes for excellent visual optimization. As a result, you can easily improve the light, shadow, and colour balance quality of your videos.
VISIBLE DETAILS IN DARK SCENES
The technology lets you make black-level adjustments, which facilitate the display of more details in video surveillance images captured in the nighttime or low-light environments.
EASY CONTROL AND INTEGRATION
The built-in RS232 / LAN connections and AG Neovo PID command & Ctrl software allow you to easily control, configure and maintain multiple-display installations in a simple and intuitive way. The software provides intuitive web and mobile interfaces for remote management and OSD-related settings.
SUPERIOR COMPATIBILITY

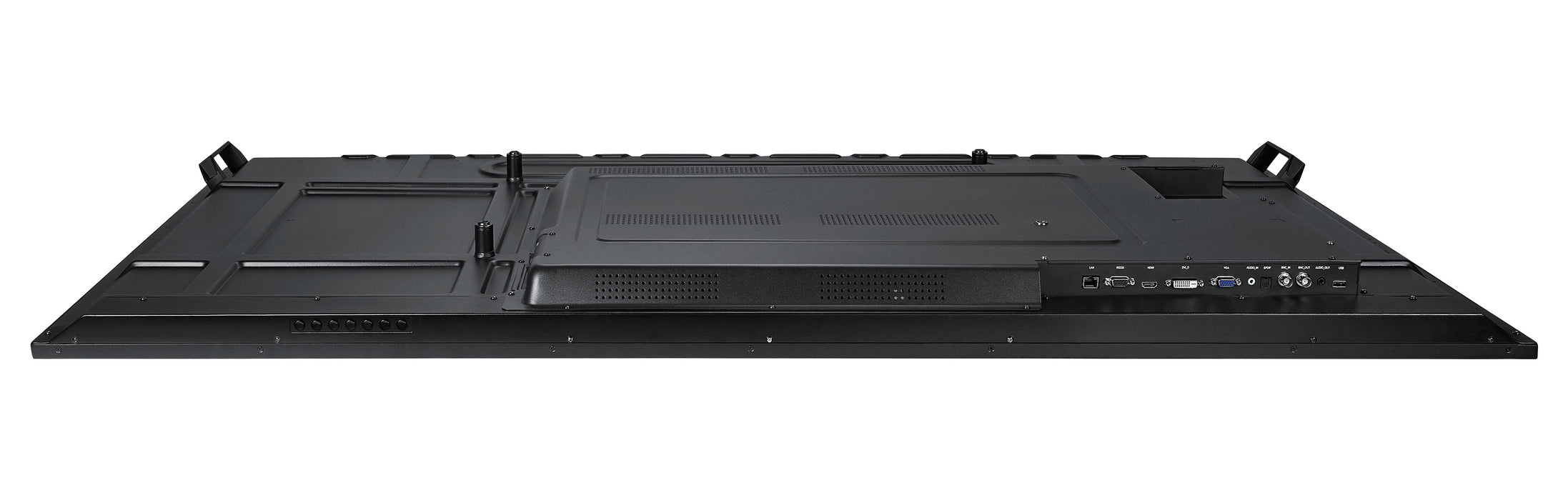

The SMQ-6501 is a large-scale 4K surveillance display with built-in BNC and HDMI connections that supports both legacy systems wired over BNC and the 4K digital CCTV systems to display videos.
| Product type | CCTV monitor |
| Mounting type | Wall-mounted |
| Product colour | Black |
| LED indicators | Yes |
| Certification | EAC, UKCA |
| Display diagonal | 165.1 cm (65") |
| Display resolution | 3840 x 2160 pixels |
| Display type | LED |
| Display brightness | 400 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 86 Hz |
| Response time | 5 ms |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 10 W |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Power source type | AC |
| Power consumption (typical) | 123 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 100 - 240 V |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 123 kWh |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| Weight | 26 kg |
| Height | 851.7 mm |
| Depth | 79.8 mm |
| Width | 1476.7 mm |
| Package type | Box |
| Package width | 1660 mm |
| Package depth | 220 mm |
| Package height | 1045 mm |
| Package weight | 36.5 kg |
| AC adapter included | Yes |
| Quantity | 1 |

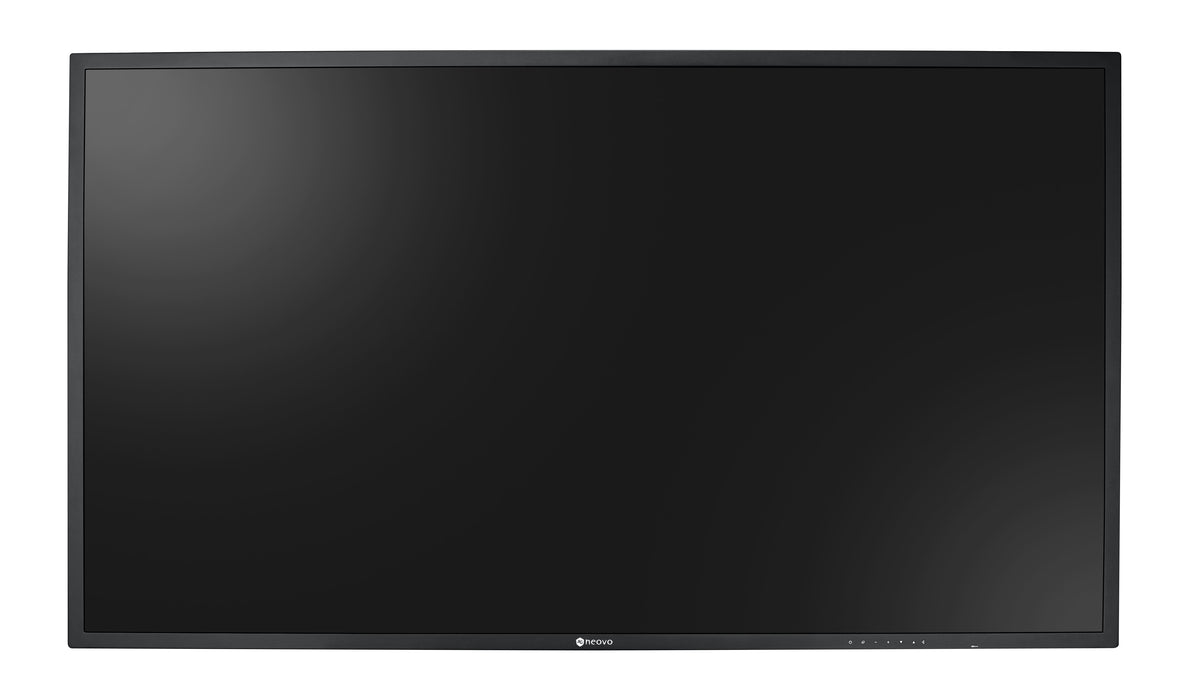

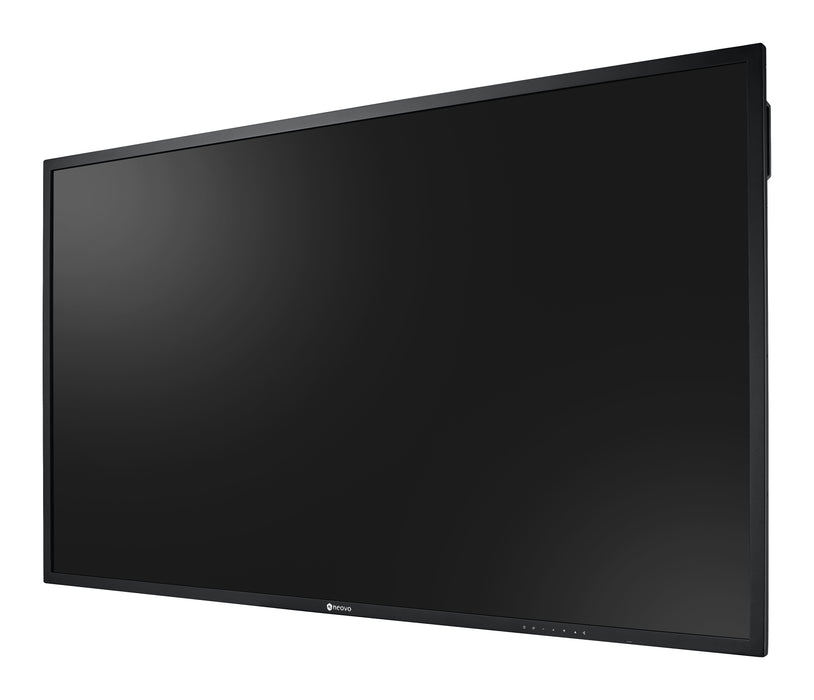

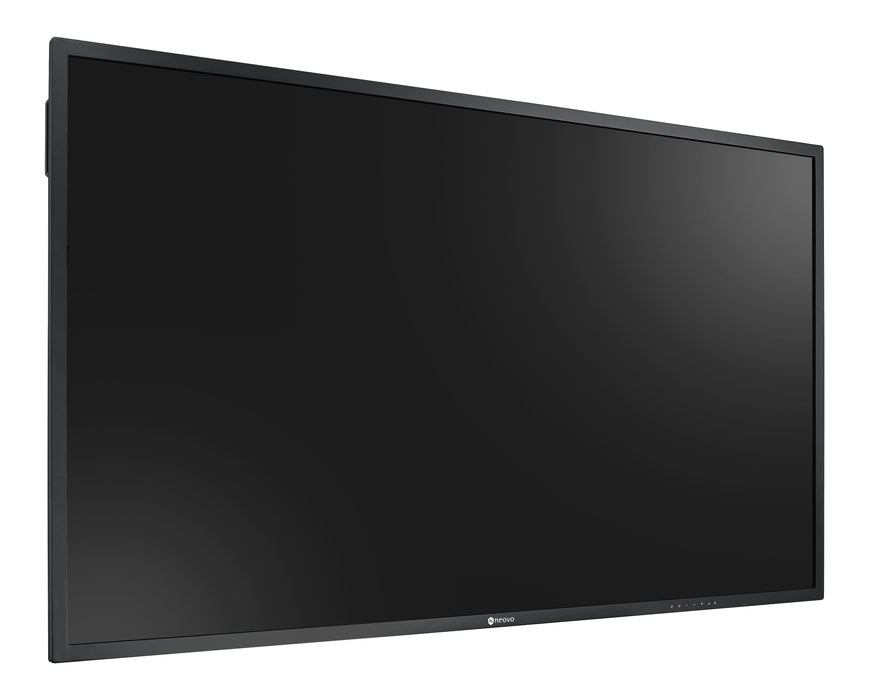

AG Neovo SMQ-6501
