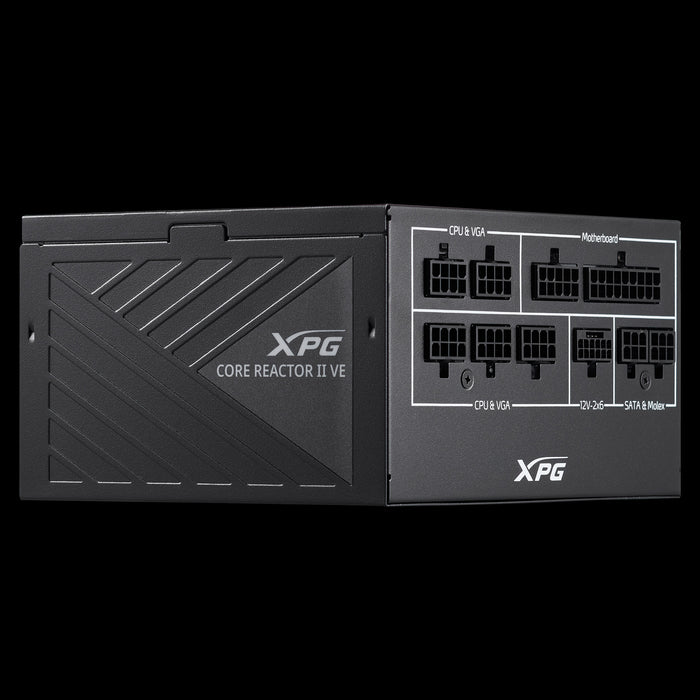

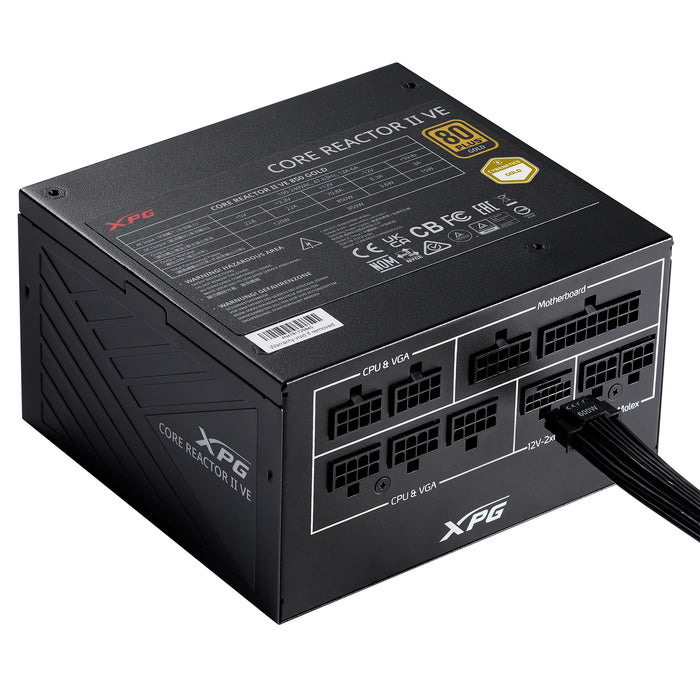

CORE REACTOR II VE
CORE COMPETENCE
XPG CORE REACTOR II VE empowers your system with efficient power delivery. It’s compatible with Intel’s latest ATX 3.1 design guidelines and has a dedicated 12V-2x6 connector for the latest graphics cards. This unit boasts a DC-DC circuit design for enhanced performance, stability, and consistency, with exceptional ripple control and hold-up time surpassing Intel's specifications. It has 8 industrial protections fortifying its durability, safeguarding both the unit and your system.
ATX 3.1 Compatible
XPG CORE REACTOR II VE integrates seamlessly with ATX 3.1 standards, enhancing performance and reliability. With a dedicated 12V-2x6 connector, it ensures optimal compatibility with the latest graphics card requirements, delivering advanced power delivery and efficiency.
12V-2x6 Connector
The provided 12V-2x6 connector ensures direct and efficient power delivery to critical components, maximizing system stability and performance. By minimizing voltage drops and optimizing efficiency, this connector guarantees consistent and reliable power for your system's demanding needs.
DC-DC Circuit Design
XPG CORE REACTOR II VE’s DC-DC circuit design maximizes efficiency and reliability by converting power directly to the required output voltage. This enhances system stability, reduces heat generation, and prolongs hardware lifespan.
Low Ripple Noise Design
XPG CORE REACTOR II VE features a low ripple noise design, surpassing Intel's specifications with ripple levels below 60mV at +12V and below 40mV at +5V and +3.3V. This ensures stable power delivery, minimizes electrical interference, and enhances system performance, providing a seamless computing experience.
15ms Hold Up Time
XPG CORE REACTOR II VE boasts an impressive hold-up time, surpassing Intel’s standards with over 15ms of uninterrupted power delivery. This ensures reliable operation under challenging conditions, making it the perfect choice for high-performance computing setups.
8 Industrial Protections
XPG CORE REACTOR II VE offers 8 industrial-grade protections, shielding your system from over-voltage, under-voltage, overcurrent, short circuits, and more. With this comprehensive protection suite, you can rely on uninterrupted performance with peace of mind, even in the wake of electrical anomalies.
140mm Length
XPG CORE REACTOR II VE's compact 140mm length design maximizes space efficiency without compromising on performance. Its sleek form factor ensures easy integration into various PC setups and chassis, delivering uncompromising power and reliability.
PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
Power
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 10 A
Power factor: 0.99
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

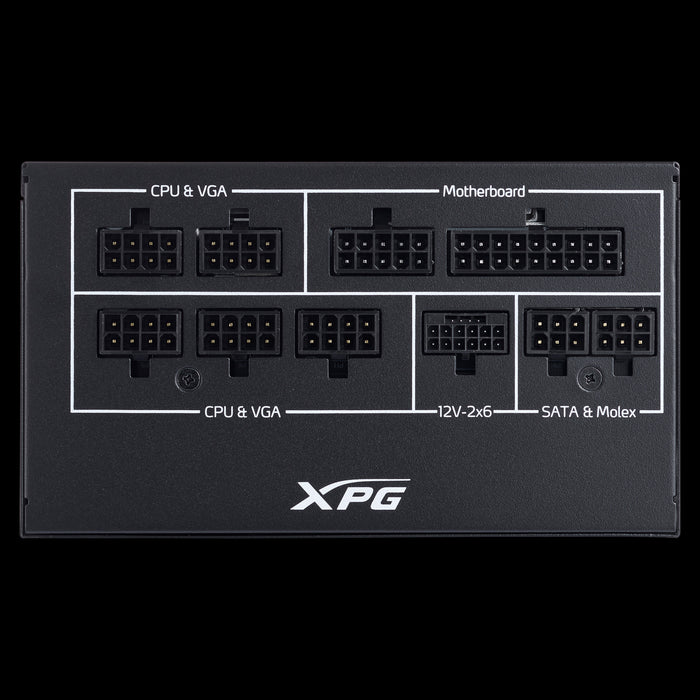

Ports & interfaces
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 6
SATA power cable length: 150,450 mm
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 75 cm
Feature: ATX power connector (12+4 pin)
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active

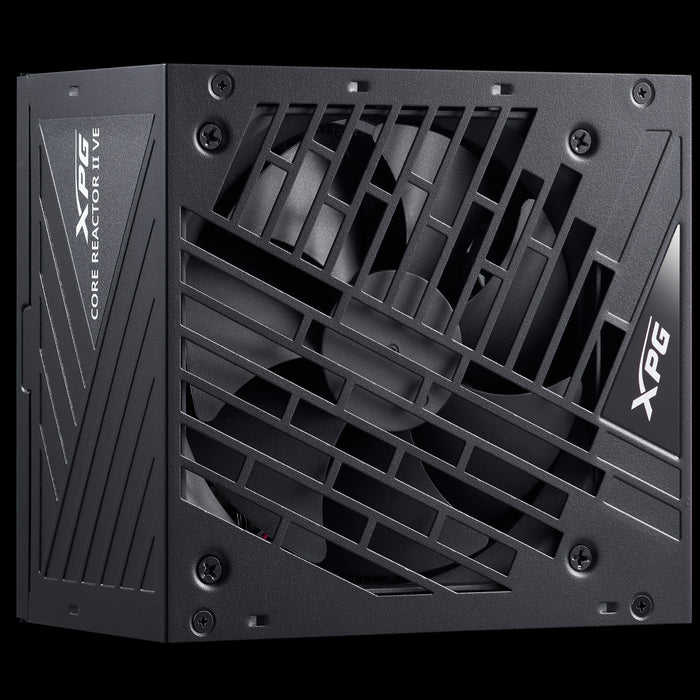

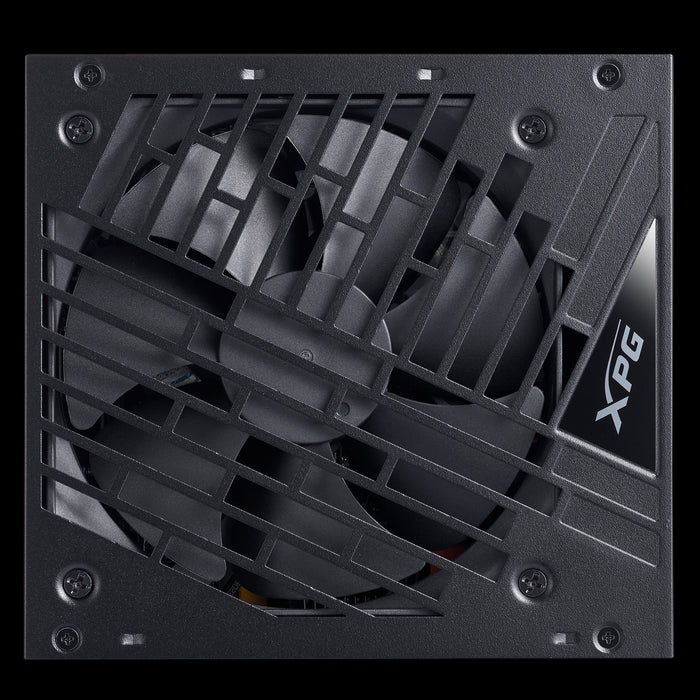

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Certificates
Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.45 kg
Packaging data
Package weight: 3.03 kg
XPG COREREACTOR II VE 750W Power Supply. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
XPG
MBR CODE - 75261424
EAN - 4711085946249
