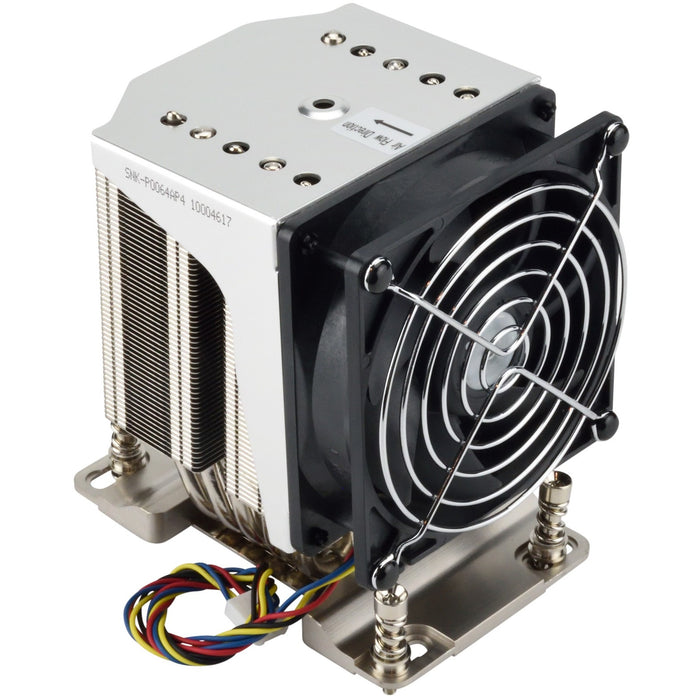

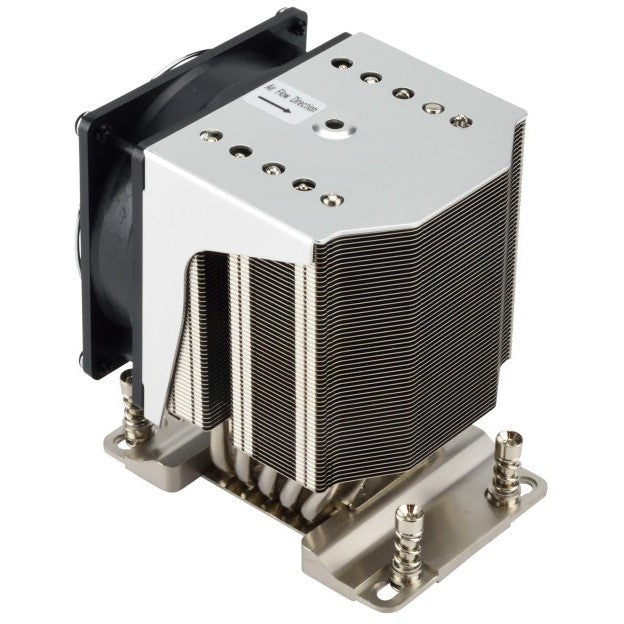

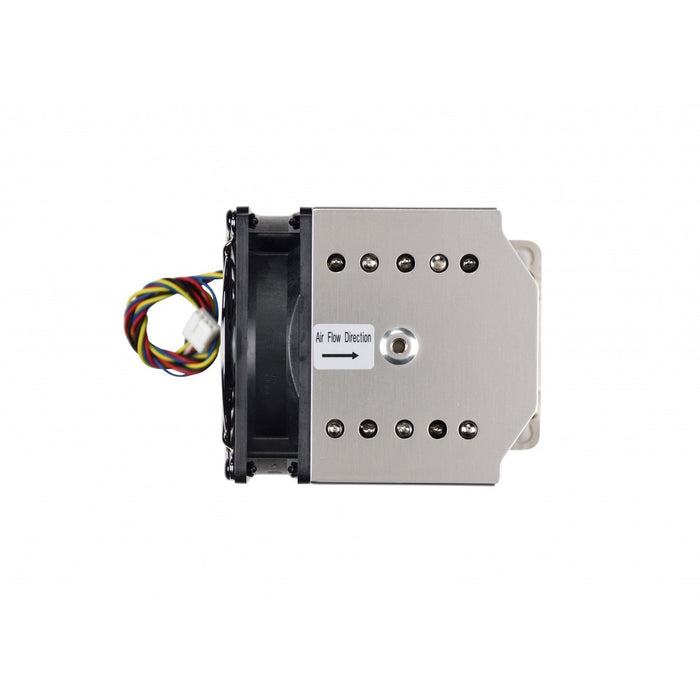

This CPU heat sink is designed for Supermicro H11 generation 4U servers and workstations equipped with AMD EPYC™ 7000 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Performance
Suitable location: Processor
Type: Cooler
Fan diameter: 9.2 cm
Supported processor sockets: Socket SP3
Compatible processor series: AMD EPYC
Rotational speed (max): 3800 RPM
Noise level (high speed): 38 dB
Feature: Pulse-width modulation (PWM) support
Mean time between failures (MTBF): 108798 h
Design
Fan connector: 4-pin
Rack capacity: 4U
Certification: REACH
Power
Rated voltage: 12 V
Thermal Design Power (TDP): 180 W
Weight & dimensions
Fan dimensions (W x D x H): 92 x 25 x 92 mm
Fan thickness: 2.5 cm
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84733080
Supermicro SNK-P0064AP4. Type: Cooler, Fan diameter: 9.2 cm, Rotational speed (max): 3800 RPM
Super Micro
MBR CODE - SNK-P0064AP4
EAN - 0672042305285
