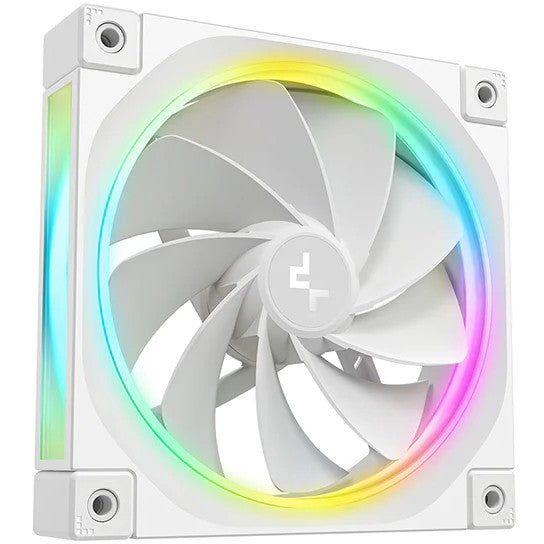

The FL12R was meticulously engineered by the DeepCool team to provide a unique light effect with reversed fan blade, ensuring high performance, low noise, and outstanding quality.
A LUMINOUS HALO
FL12R integrates a total of 36 ARGB Gen2 LEDs, with the halo ring elevating its design aesthetics to a whole new level.
UNCOMPROMISED PERFORMANCE
Equipped with a long-life fluid dynamic bearing. The FL12R PWM fans boast exceptional cooling specs while remaining relatively quiet.
DURABLE MATERIALS
The entire structure and dynamic balance are further strengthened by using an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades.
SECURE CONNECTION

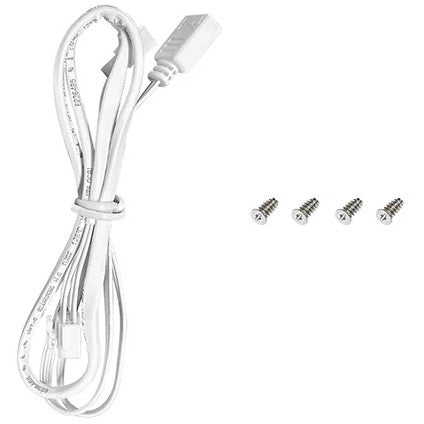

The 8-pin connectors, integrated with PWM and ARGB SYNC, provide a more accessible and safer user installation experience.
REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.
Performance
Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Supported processor sockets: Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow: 55 cfm
Fan noise level (max): 33.9 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 450 RPM
Fan speed (max): 2365 RPM
Fan static pressure: 2.59 mmH2O
Design
Product colour: White
Number of fans: 1 fan(s)
Feature: Illumination LED
LED connector type: 3-pin
Fan connector: 4-pin
Power
Rated voltage: 12 V
Fan power consumption: 1.8 W
Rated current: 0.15 A
LED voltage: 5 V
LED power consumption (fan): 2.75 W
Weight & dimensions
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Fan weight: 181 g
DeepCool FL12R. Type: Fan, Fan diameter: 12 cm. Product colour: White
Deepcool
MBR CODE - R-FL12R-WHAPN1-G
EAN - 6933412785163
