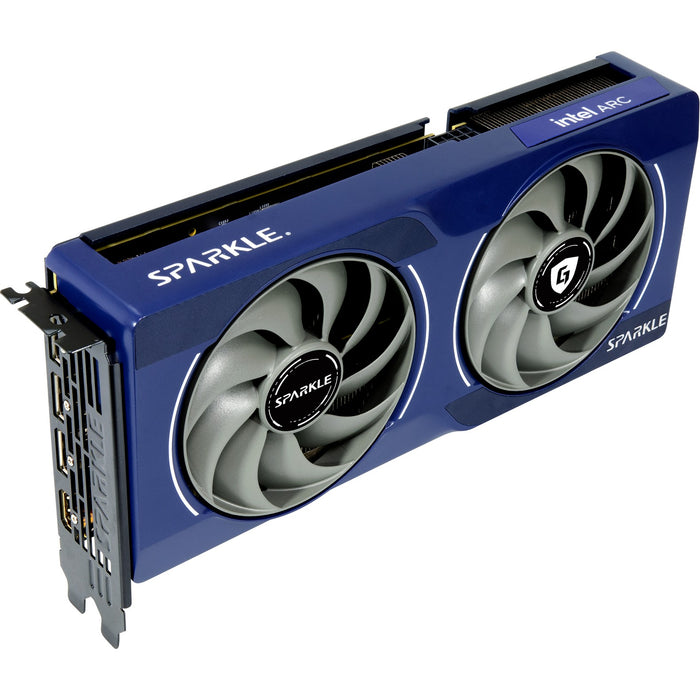

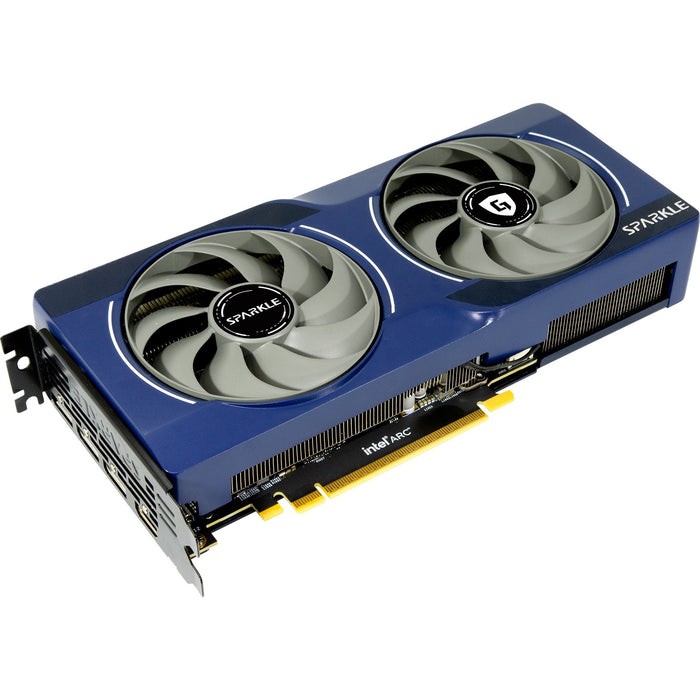

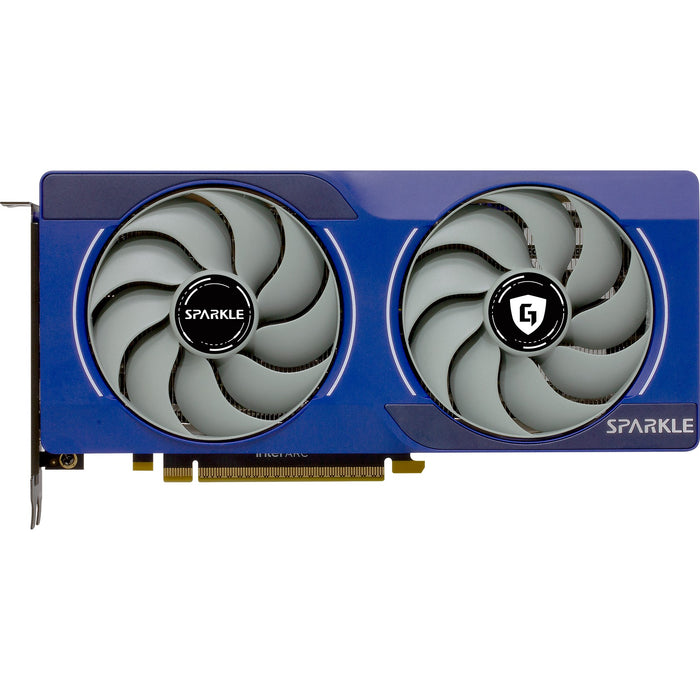

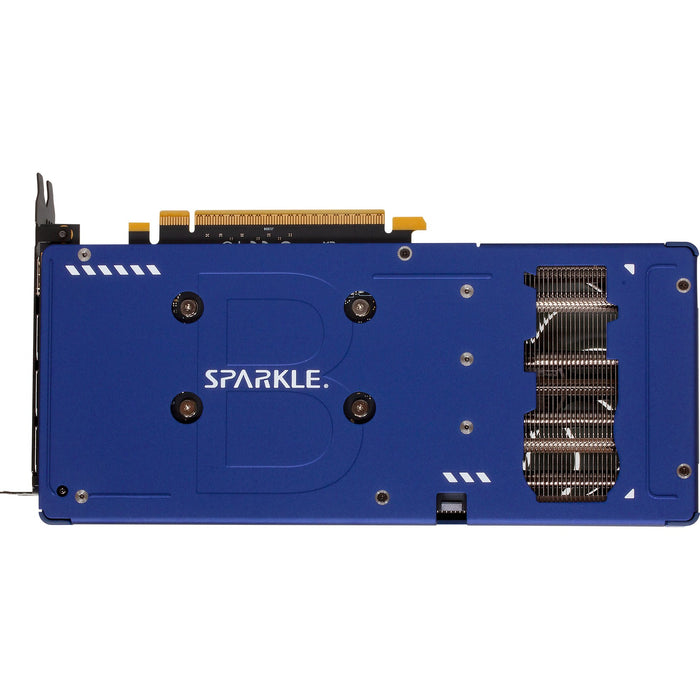

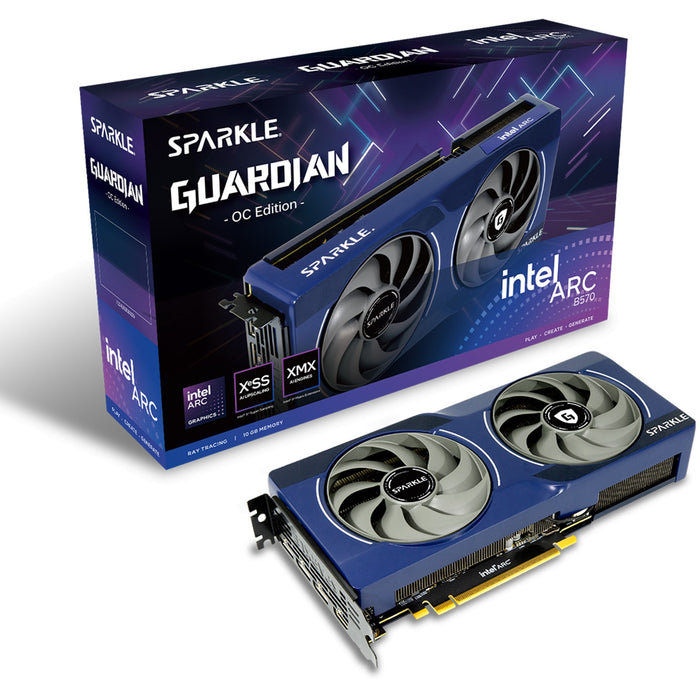

The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel
XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
Processor
Graphics processor family: Intel
Graphics processor: Arc B570
Processor frequency: 2500 MHz
Processor boost clock speed: 2660 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4
Ray accelerators: 18
Memory
Discrete graphics card memory: 10 GB
Graphics card memory type: GDDR6
Memory bus: 160 bit
Memory bandwidth (max): 380 GB/s
Ports & interfaces
Interface type: PCI Express x8 4.0
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 3
DisplayPort version: 2.1
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
OpenCL version: 3.0
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 144
Xe-cores: 18
NPU performance up to: 203 TOPs
Design
Cooling type: Active
Number of fans: 2 fan(s)
Number of slots: 2.2
Product colour: Blue
Power
Minimum system power supply: 600 W
Power consumption (typical): 150 W
Supplementary power connectors: 1x 8-pin
Power consumption (max): 170 W
Power supply location: Top
System requirements
Windows operating systems supported: Windows 10, Windows 11
Minimum system requirements: PCI-Express compliant MB with one x16 PCIe slot
Minimum processor: 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
Minimum RAM: 8000 MB
Weight & dimensions
Weight: 796 g
Length: 242 mm
Depth: 44 mm
Height: 105 mm
Packaging data
Package type: Box
Sparkle Technology Intel Arc B570 GUARDIAN OC. Graphics processor family: Intel, Graphics processor: Arc B570, Processor frequency: 2500 MHz. Discrete graphics card memory: 10 GB, Graphics card memory type: GDDR6, Memory bus: 160 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Sparkle
MBR CODE - SB570G-10GOC
EAN - 4711342290856
