The GPS series from Argus stands for powerful and reliable power supplies in the levels 600W, 700W, 800W and 900W. Whether for upgrading existing systems or for configuring new ones, thanks to 80PLUS Gold 230V EU certification and state-of-the-art components, the GPS series will keep you up to date. To secure the built-in hardware and the power supply unit itself, we did not make any compromises and have equipped the power supply units of the GPS series with a total of five protective circuits (OPP, SCP, OVP, OCP and NLP).

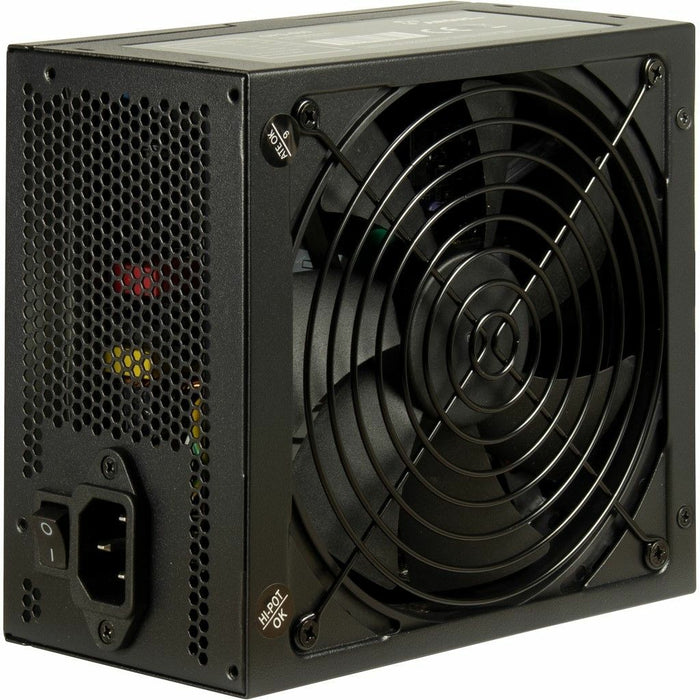

The entire GPS series is equipped with a smooth-running 140mm fan and an intelligent fan control, or IFC for short. The IFC ensures that the fan of the power supply only starts cooling when the internal temperature of the power supply exceeds 65°C. If the internal temperature falls below 65°C, the fan is switched back to idle mode - this keeps the noise level of the power supply unit extremely low.
When it comes to the variety of connections, we also kept an eye on the greatest possible efficiency and, with the exception of the 20+4pin connection, designed all other cable strands as flat ribbon versions - saving space and time when laying. The GPS-900 has four PCIe 6+2pin and six S-ATA connections available. With 75A on the 12V line, there is more than enough power available for potent hardware. We round off the overall package with a 60-month manufacturer's guarantee for the entire GPS series.
Power
Total power: 900 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 900 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 75 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90.82%
Power protection features: Over current, Over power, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 1
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 38.4 dB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
Packaging content
Cables included: AC
Weight & dimensions
Width: 150 mm
Depth: 160 mm
Height: 86 mm
Logistics data
Harmonized System (HS) code: 84733020
Inter-Tech GPS-900. Total power: 900 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Cables included: AC
Inter-Tech
MBR CODE - 88882209
EAN - 4260455647120
