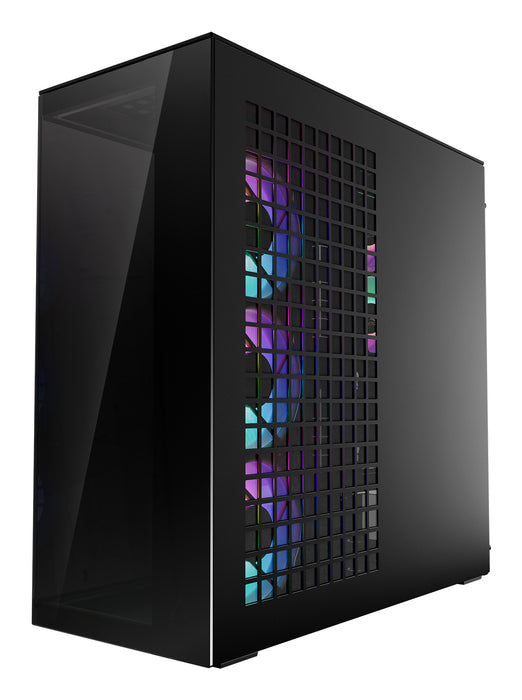

Xtend your Cooling
The Xtender is a high-airflow panorama case for maximum air circulation. Five pre-installed fans ensure efficient cooling of high-performance components. The power supply unit (PSU) will be mounted approximately 20 mm above the bottom to ensure an optimal supply of fresh air.
Compatibility for 120 or 140 mm Fans

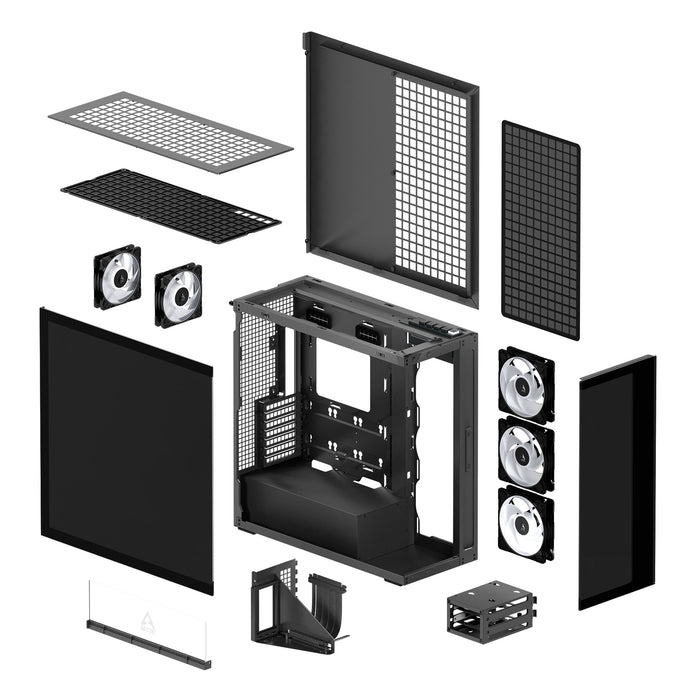

Modular, removable fan brackets for installing 140 mm fans at the top or on the side.
Supports Two 420 mm Radiators
Supports two 420, 360, 280 or 240 mm radiators for high-performance AIOs and custom loops.
Magnetic Mesh Filters
Easily removable, reinforced filters protect against dust and allow quick cleaning.

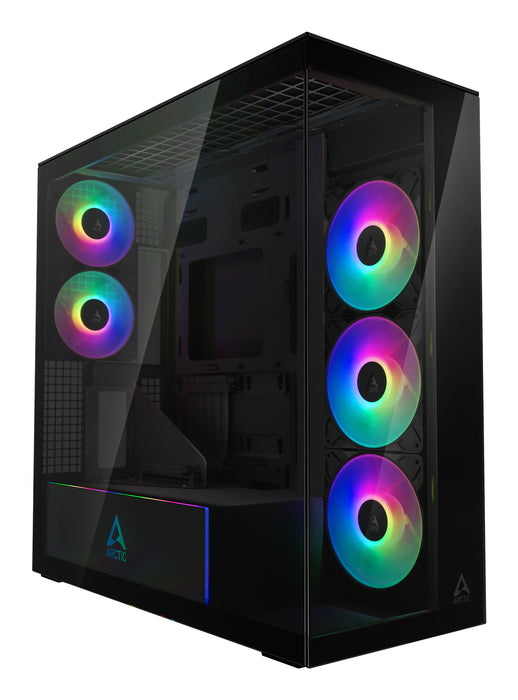

Five preinstalled Fans
Xtend your Vision

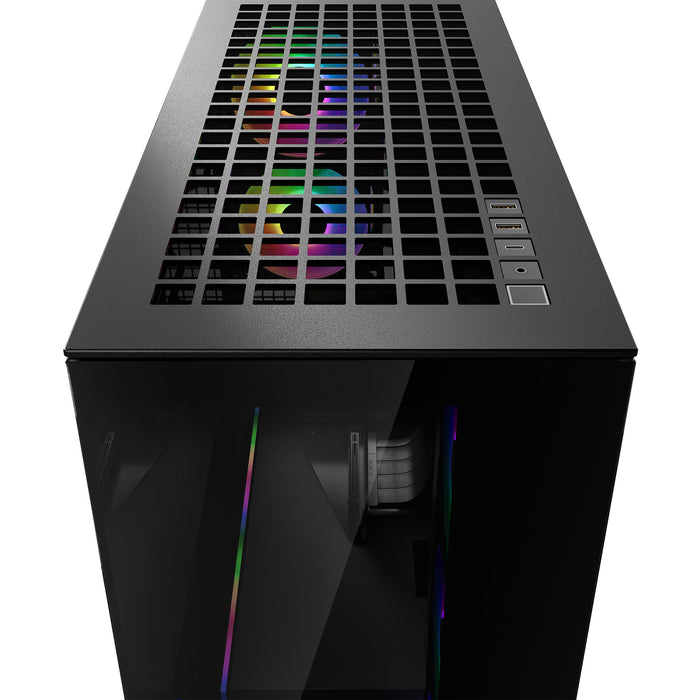

Functional I/O Panel
No frills. Only the most important and frequently used ports are included.

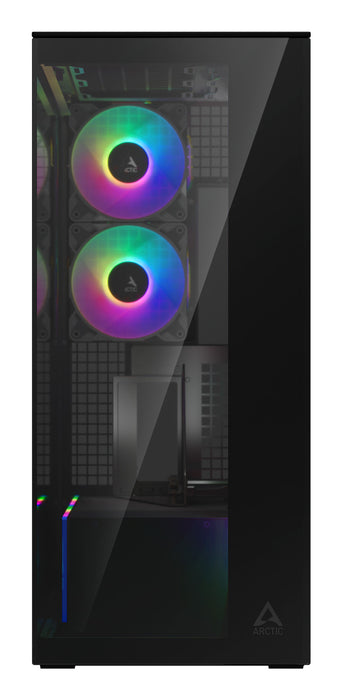

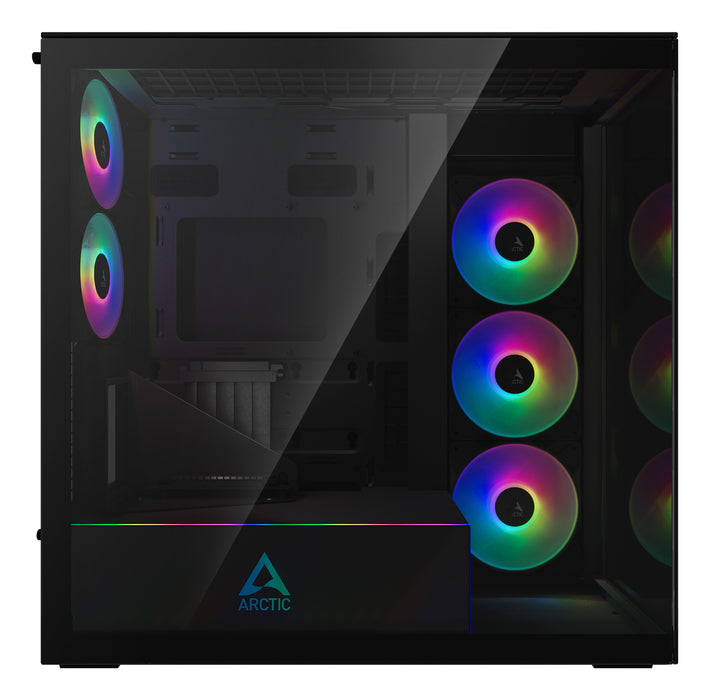

Tempered Glass Side Panels
Large tempered glass windows provide a clear view of the hardware.
A-RGB PSU Cover
Integrated glass panel with 24 A-RGB LEDs illuminates the lower section of the case.
Xtend your Storage
Flexible Mounting for Up to Six Drives
Supports three 2.5" drives behind the motherboard tray. Removable drive cage holds two 3.5"/2.5" and one additional 2.5" drive.
Xtend your Experience
Includes Accessory Box
Includes extra screws, cable ties and space for additional small parts.
3D Cable Pass-Throughs for Improved Aesthetics
For clean cable routing behind the motherboard and a tidy interior.

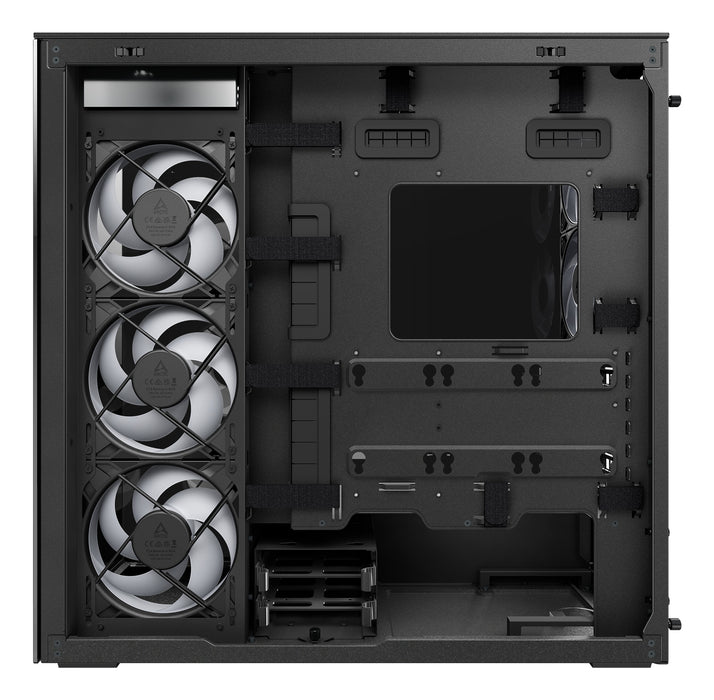

Clean Cable Management
Smart cutouts and optimally placed cable straps for easy cable management.
Design
Material: Metal, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: EATX
Number of 3.5" bays: 3
Number of 2.5" bays: 3
Number of internal 3.5" bays: 3
Number of storage drives supported: 6
Number of expansion slots: 7
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans, Side
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 17.1 cm
Maximum graphics card length: 48.2 cm
Power supply
Power supply location: Bottom
Supported power supply form factors: ATX
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port
Cooling
Side fans installed: 3x 140 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120,140 mm

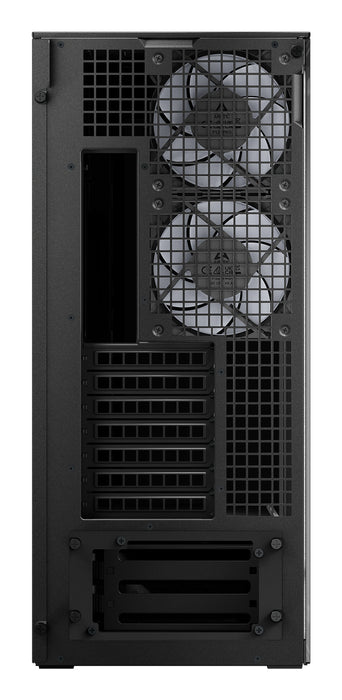

Rear fans installed: 2x 120 mm
Number of rear fans supported (max): 2
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Fan speed: 600 - 3000 RPM
Maximum airflow: 77 cfm
Fan rated voltage: 5 - 12 V
Fan 2 maximum airflow: 98 cfm
Maximum air pressure: 6.9 mmH2O
Fan 2 maximum air pressure: 5.1 mmH2O
Side radiator sizes supported: 360,420 mm
Top radiator sizes supported: 360,420 mm
Storage
Supported HDD sizes: 2.5,3.5"
Feature: HDD/SSD combo cage
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Width: 231 mm
Depth: 529 mm
Height: 529 mm
Weight: 15.4 kg
Packaging data
Package width: 327 mm
Package depth: 624 mm
Package height: 637 mm
Package weight: 16.8 kg
Other features
Bearing type: Fluid bearing
Volume: 64 L
Fan connector: 4-pin
ARCTIC Xtender VG (Mirror Black) Premium E-ATX PC Case with Vertical GPU Mounting. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 140 mm, Side fans diameters supported: 120,140 mm, Rear fans installed: 2x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 529 mm, Height: 529 mm
ARCTIC
MBR CODE - ACPCC00019A
EAN - 4895265000584
