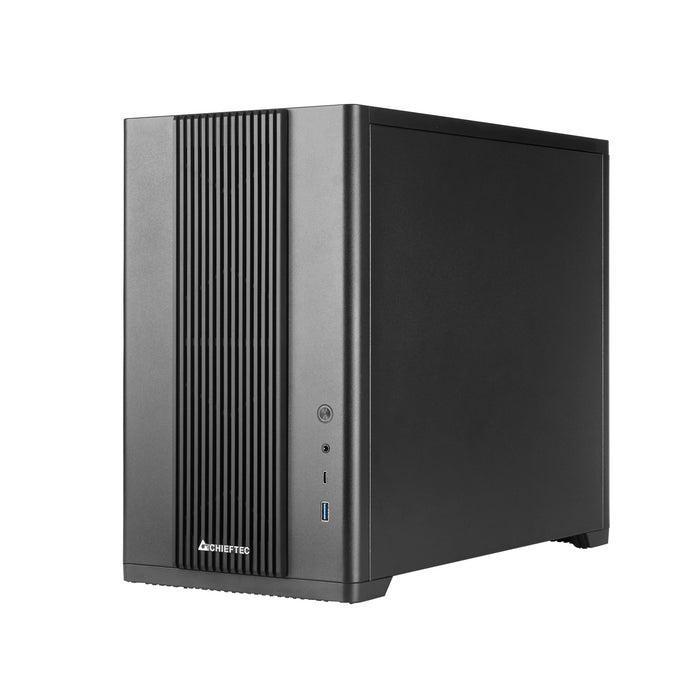

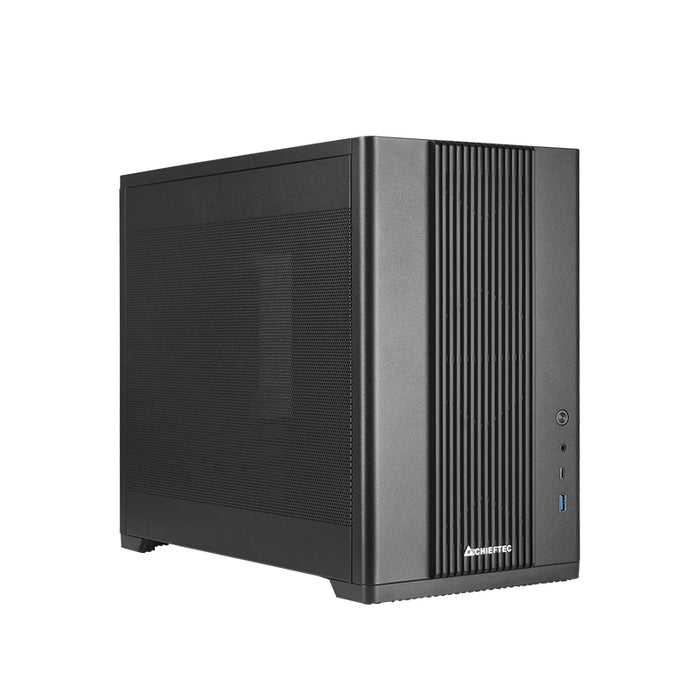

The CHIEFTEC BX-MESH is a modern, compact mini tower that combines elegant and subtle design with high functionality and easyinstallation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-M-OP from a space or cooling perspective.
Design
Material: Metal
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 3
Number of internal 3.5" bays: 1
Number of expansion slots: 4
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 38 cm
Maximum PSU length: 18 cm
Power supply
Power supply location: Rear
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Feature: Combo headphone/mic port
Cooling
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120,140 mm
Top radiator sizes supported: 240 mm
Storage
Supported HDD sizes: 2.5,3.5"
SSD form factor: 2.5"
Technical details
Warranty period: 2 year(s)
Weight & dimensions
Width: 204 mm
Depth: 415 mm
Height: 325 mm
Material thickness: 0.6 mm
Chieftec BX-10B-M-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Power supply location: Rear. Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 204 mm, Depth: 415 mm, Height: 325 mm
Chieftec
MBR CODE - BX-10B-M-OP
EAN - 0753263078414
