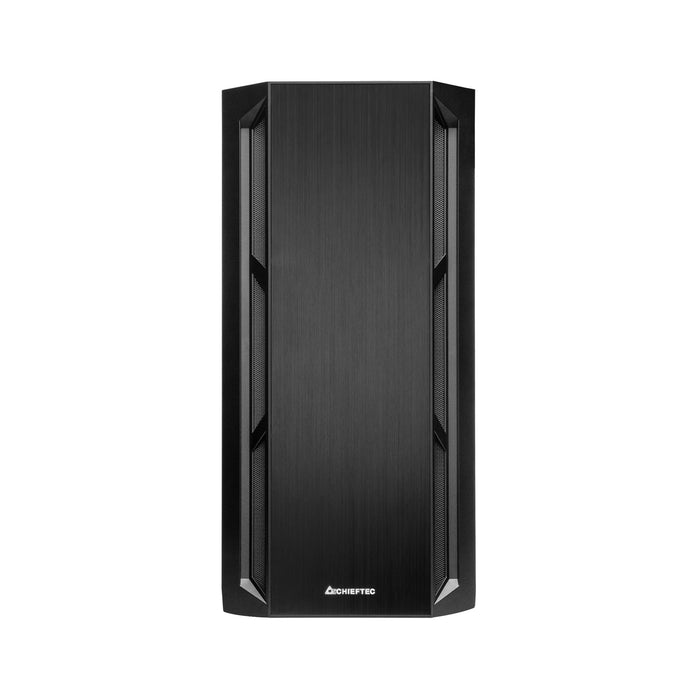

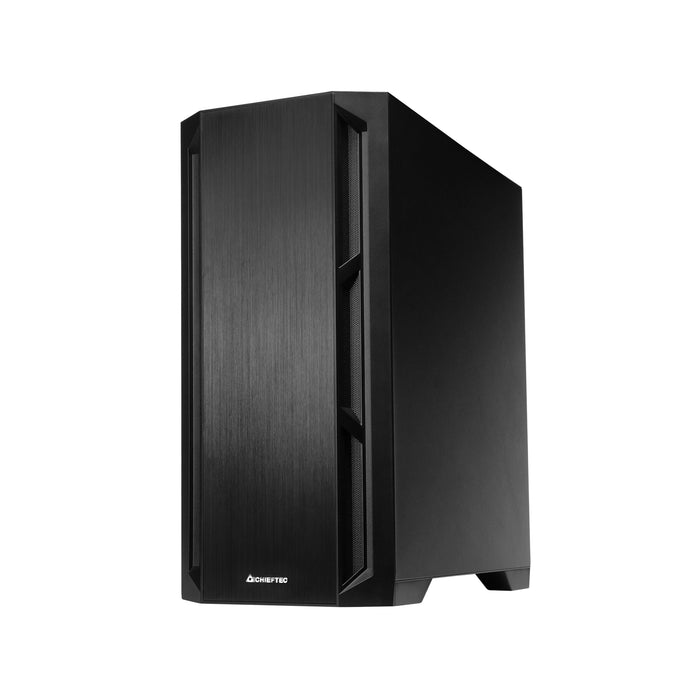

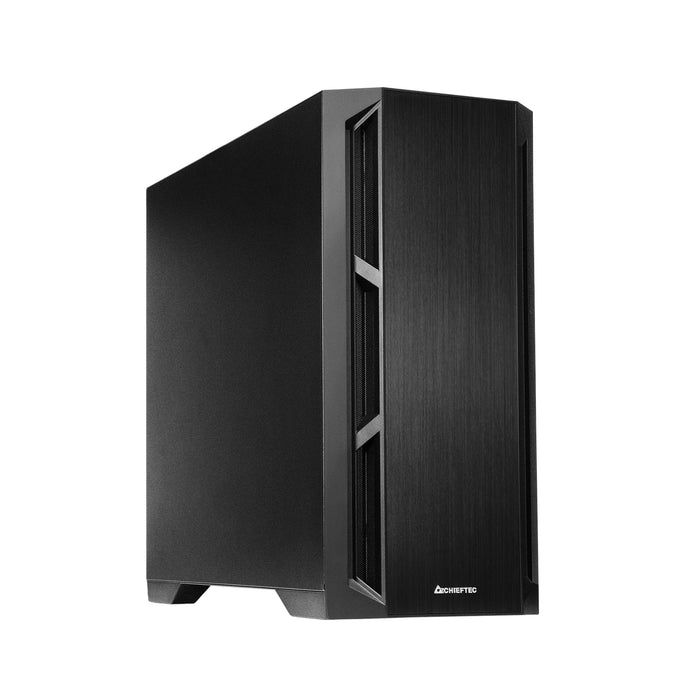

The CHIEFTEC APEX Q presents an elegant and subtle brushed front panel design, complemented by an interior equipped with a modern layout for optimal cooling compatibility.

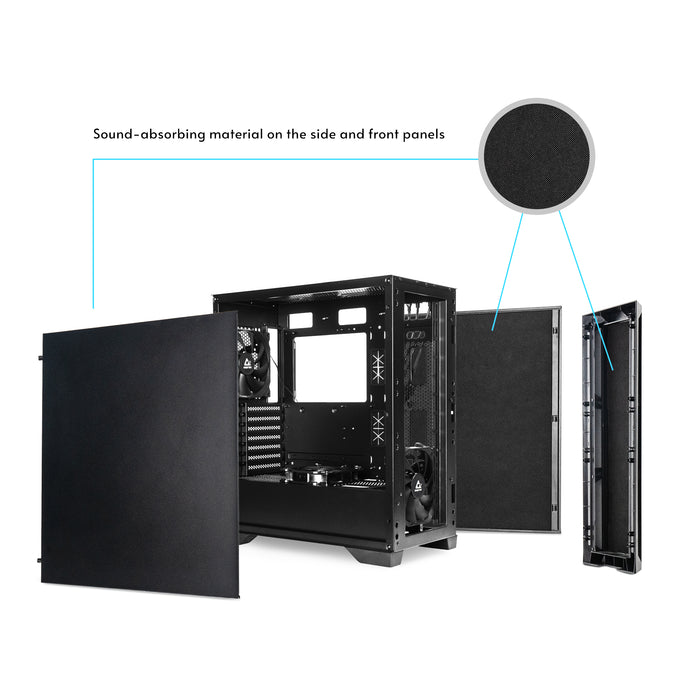

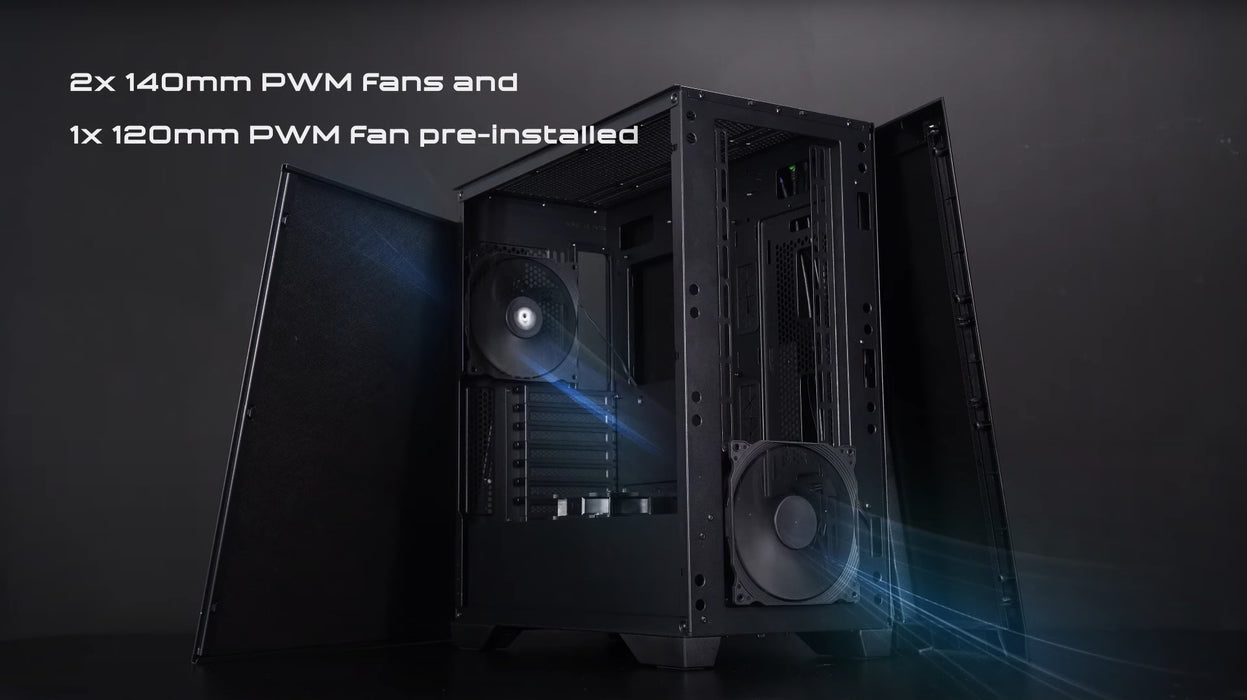

It features added sound-absorbing material on the side and front panels to provide a quiet user experience. The APEX Q comes with three PWM fans pre-installed, one 140mm in the front, another 140mm in the rear, and one 120mm on the PSU cover, optimizing the cooling performance and airflow particular for the GPU.
The CHIEFTEC APEX Q is ready to deliver customers an enhanced experience of elegance and quality design.
Design
Material: SPCC
Form factor: Midi Tower
Type: PC
Supported motherboard form factors: ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of storage drives supported: 4

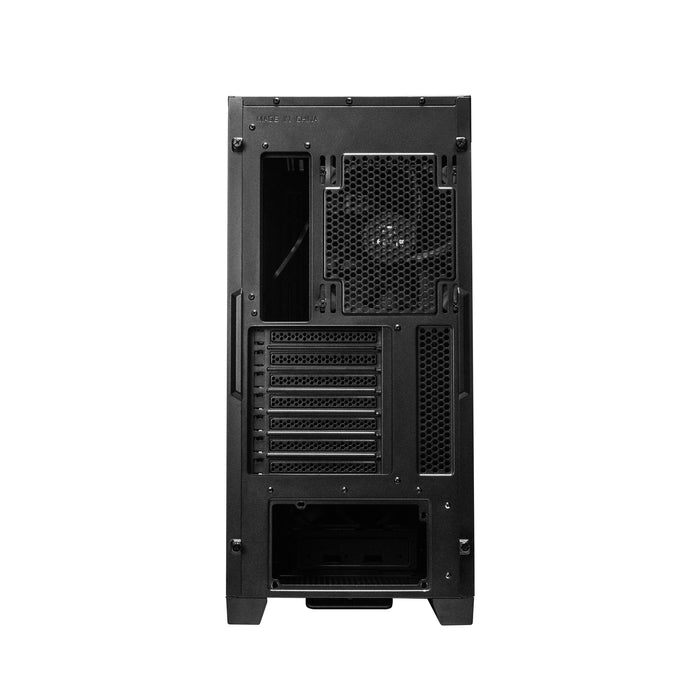

Number of expansion slots: 7
Full-Height expansion slots: 7

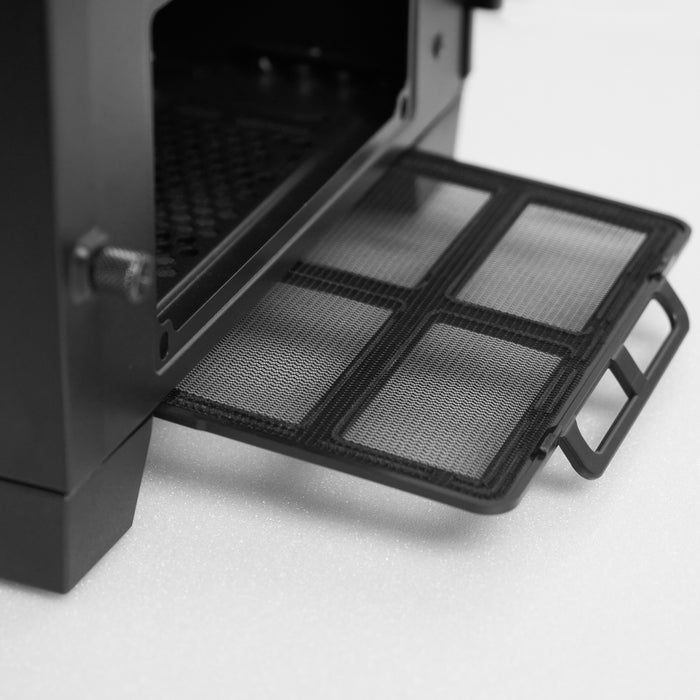

Feature: Anti-dust filter

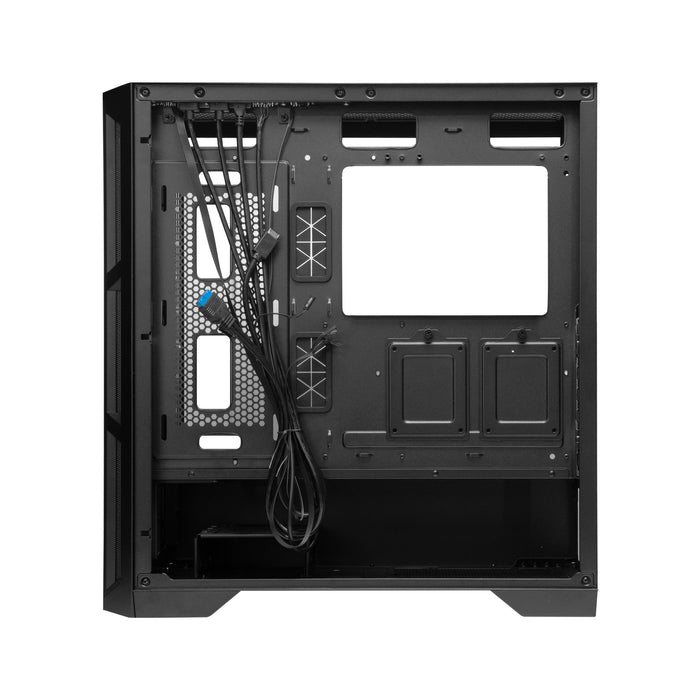

Feature: Cable management
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 40 cm
Maximum PSU length: 22 cm

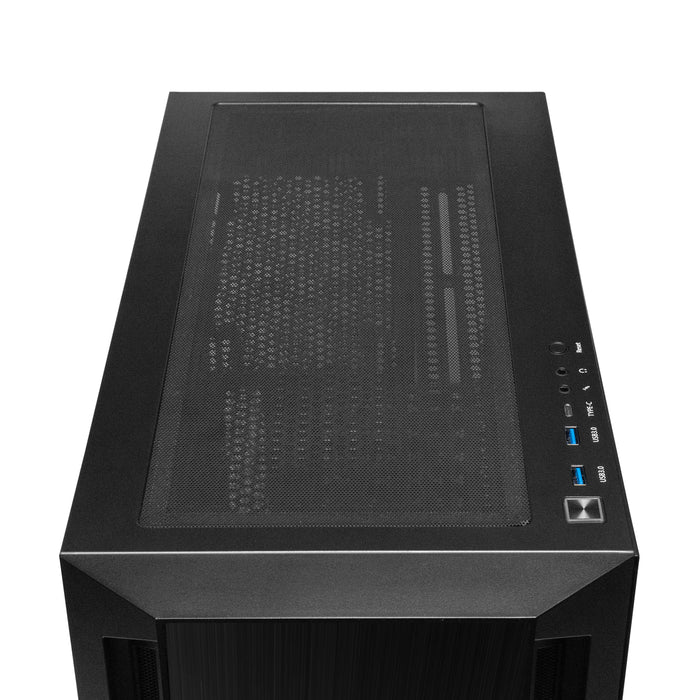

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 1x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Number of side fans supported (max): 2
Side fans diameters supported: 120 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3

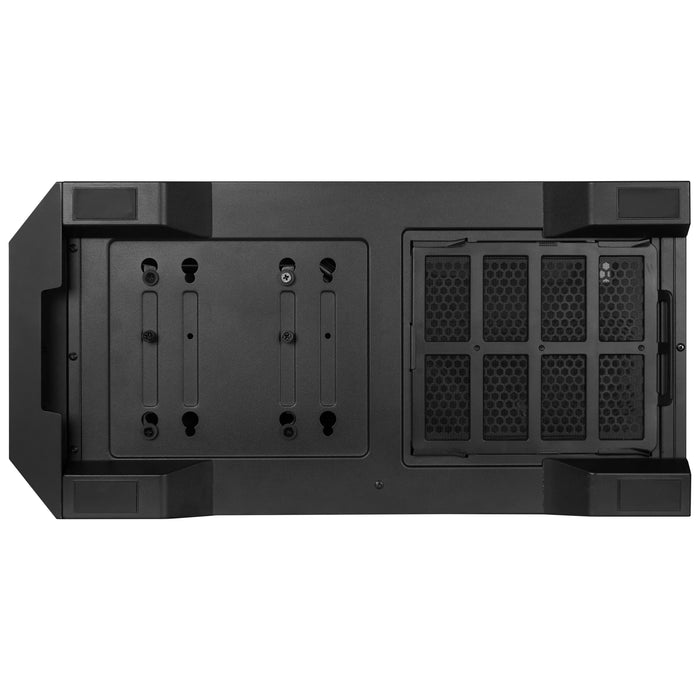

Bottom fans installed: 1x 120 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Feature: Liquid cooling capability
Front radiator sizes supported: 240,280,360,420 mm
Top radiator sizes supported: 240,280,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 230 mm
Depth: 465 mm
Height: 495 mm
Weight: 7.3 kg
Material thickness: 0.6 mm
Packaging data
Package weight: 8.75 kg
Chieftec Midi APEX Series GA-01B-Q-OP. Form factor: Midi Tower, Type: PC, Supported motherboard form factors: ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm. Package weight: 8.75 kg
Chieftec
MBR CODE - GA-01B-Q-OP
EAN - 0753263078643
