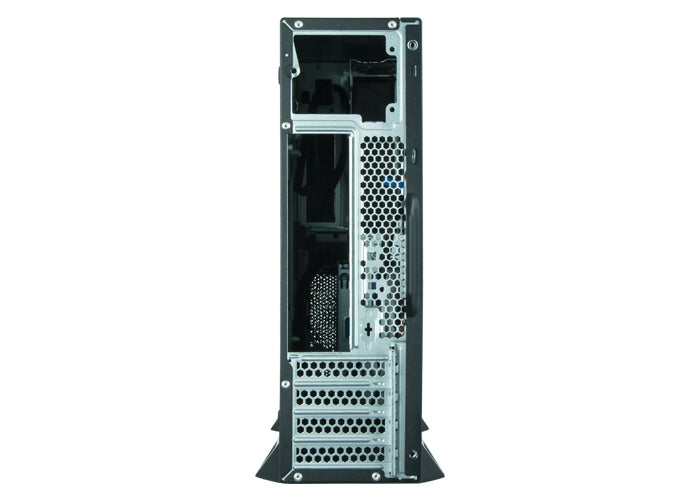

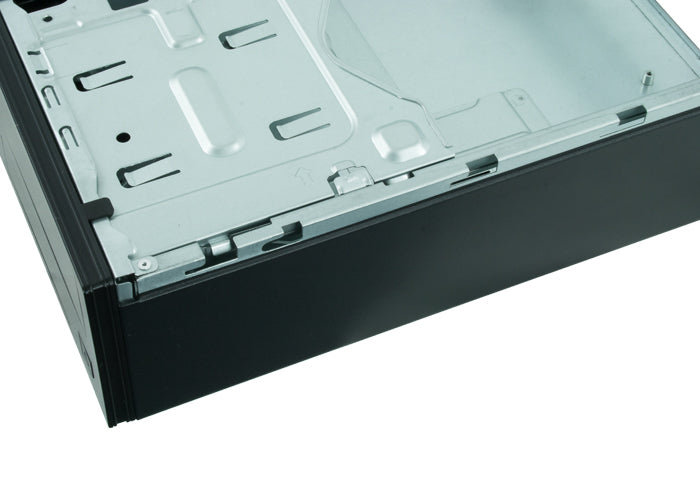

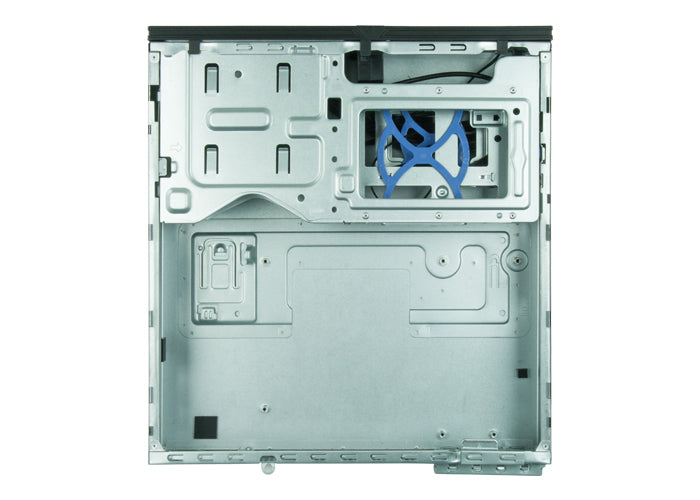

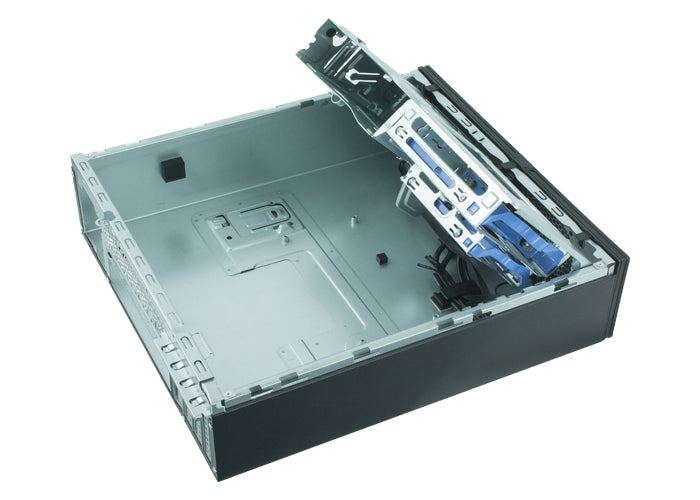

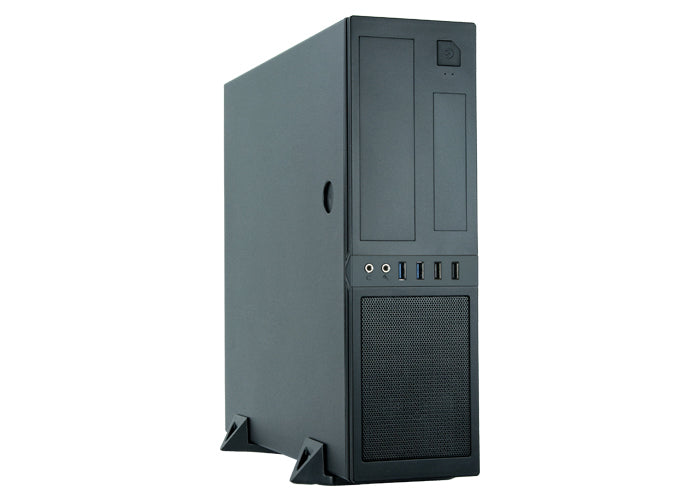

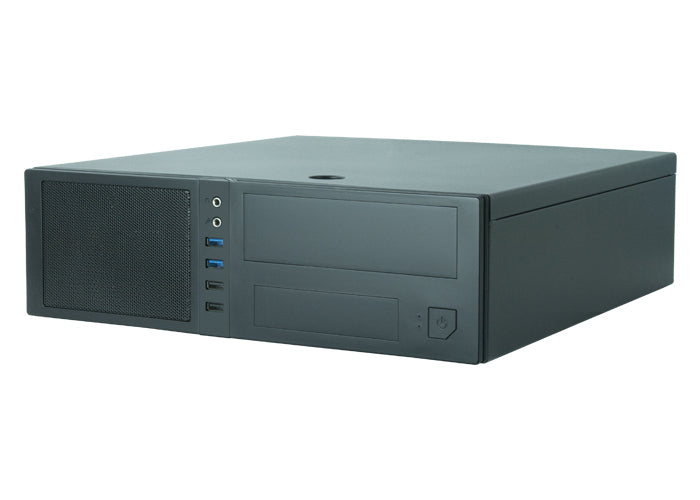

The mATX all-rounder – Compact and multifunctional mATX chassis... whether horizontally or vertically positioned, the CS-12B-300 remains an eyecatcher. All components are easily installed thanks to the quick-release bracket technology. With 4 expansion slots, up to 4x Half-Height PCI cards can be installed. The CS-12B-300 comes bundled with the powerful low-noise TFX power supply GPF-300P.
Design
Material: SGCC
Form factor: Mini Tower
Type: PC
Product colour: Black
Supported motherboard form factors: Mini-ITX
Number of 3.5" bays: 1
Number of 5.25" bays: 1
Number of 2.5" bays: 1
Number of external 5.25" bays: 1
Number of expansion slots: 4
Half-Height expansion slots: 4
Suitable for: Home/Office
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 8.5 cm
Maximum graphics card length: 19.5 cm
Power supply
Feature: Power supply included
Power supply: 300 W
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Front fans installed: 1x 80 mm
Number of front fans supported (max): 1
Front fans diameters supported: 80 mm
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 102 mm
Depth: 356 mm
Height: 338 mm
Weight: 4.75 kg
Material thickness: 0.6 mm
Logistics data
Harmonized System (HS) code: 84733080
Chieftec CS-12B-300. Form factor: Mini Tower, Type: PC, Product colour: Black. Power supply: 300 W. Front fans installed: 1x 80 mm, Front fans diameters supported: 80 mm. Supported HDD sizes: 2.5,3.5". Width: 102 mm, Depth: 356 mm, Height: 338 mm
Chieftec
MBR CODE - CS-12B-300
EAN - 0753263076823
