Energy-saving, ergonomic, reliable: the EV2460 offers a wide range of connection options thanks to DisplayPort, HDMI, DVI-D and D-Sub signal inputs as well as four USB downstream ports. The EV2460 caters for sophisticated computer workstations with the highest demands. Image quality and ergonomics are equally convincing. With a resolution of 1920 x 1080 pixels, an IPS LCD panel with an antireflective surface, this display excels at detailed, crystal-clear image reproduction.
Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.2745 x 0.2745 mm
Pixel density: 93 ppi
Horizontal scan range: 31 - 68 kHz
Vertical scan range: 59 - 61 Hz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Digital horizontal frequency: 31 - 68 kHz
Digital vertical frequency: 51 - 59 Hz
Colour gamut standard: sRGB
Feature: Separate H/V sync
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Home
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
USB Type-A downstream ports quantity: 4
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Audio input
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 14 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: 0 - 344°
Feature: Tilt adjustment
Tilt angle range: -5 - 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish
Power
Energy efficiency class (SDR): B
Energy consumption (SDR) per 1000 hours: 9 kWh
Power consumption (typical): 9 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 346699
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
Width (with stand): 537.8 mm
Depth (with stand): 233 mm
Height (with stand): 333.6 mm
Weight (with stand): 5.9 kg
Width (without stand): 537.8 mm
Depth (without stand): 53.6 mm
Height (without stand): 350.4 mm
Weight (without stand): 3.8 kg
Packaging content
Cables included: AC, DisplayPort, USB
Feature: Quick start guide
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Silver, TCO
Other features
Feature: On/off switch
Compliance certificates: C-TICK, CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE
Logistics data
Harmonized System (HS) code: 85285210

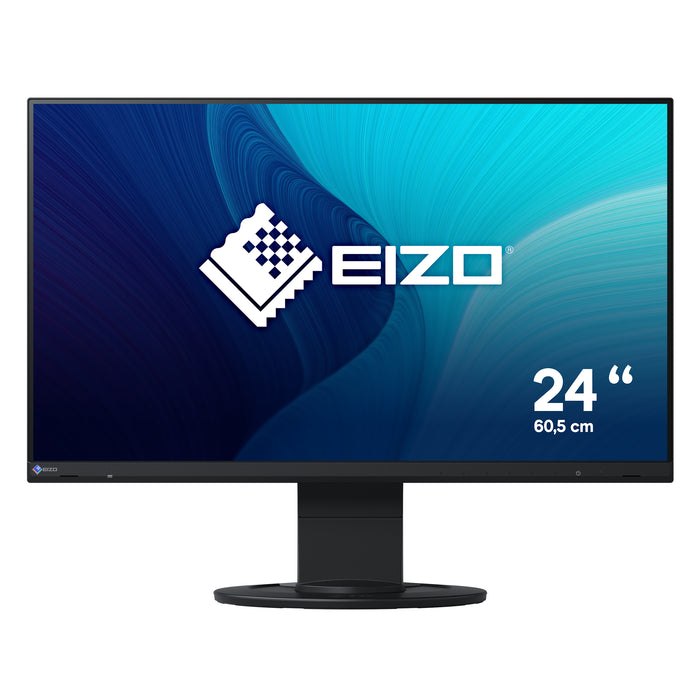

EIZO FlexScan EV2460-BK. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Eizo
MBR CODE - EV2460-BK
EAN - 4995047055297
