KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 6GB GDDR6 96-bit memory interface
WINDFORCE cooling system
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Processor
Feature: CUDA
CUDA cores: 2304
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 3050
Processor frequency: 1477 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4
Memory
Discrete graphics card memory: 6 GB
Graphics card memory type: GDDR6
Memory bus: 96 bit
Memory clock speed: 14000 MHz

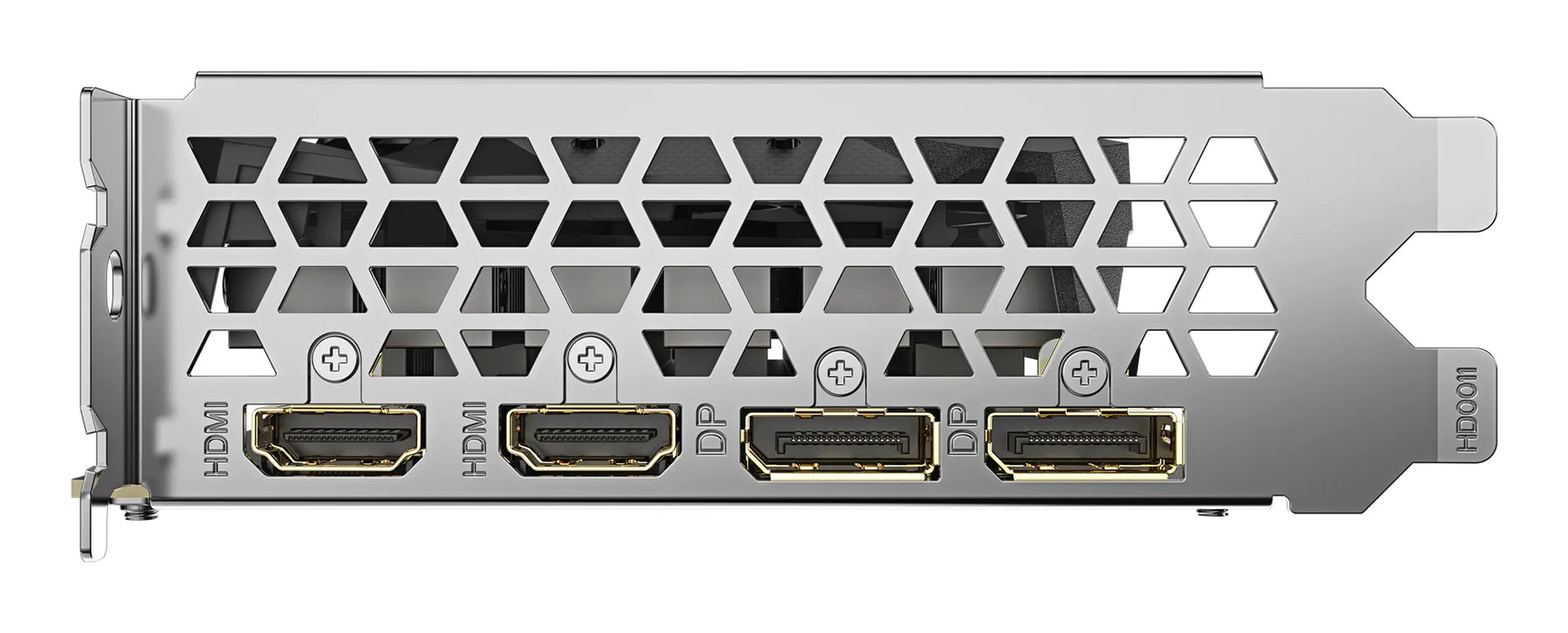

Ports & interfaces
Interface type: PCI Express 4.0
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: NVIDIA G-SYNC
Design
Cooling type: Active
Cooling technology: GIGABYTE WINDFORCE 2X
Number of fans: 2 fan(s)
Form factor: Full-Height/Half-Length (FH/HL)
Product colour: Black, Silver
Power
Minimum system power supply: 300 W
System requirements
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Weight & dimensions
Length: 191 mm
Depth: 111 mm
Height: 36 mm
Packaging data
Package type: Box
Packaging content
Feature: User guide
GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 6G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050, Processor frequency: 1477 MHz. Discrete graphics card memory: 6 GB, Graphics card memory type: GDDR6, Memory bus: 96 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Gigabyte
MBR CODE - GV-N3050WF2OCV2-6GD
EAN - 4719331355081
