EasySwap
Simply convert from M.2 to 2.5'' format. If no M.2 slot is available, an M.2 SSD can still be fitted: just use an existing SATA 22-pin or a 7-pin & 15-pin SATA III connector via our IB-M2S253 adapter. Up to 6 Gbit/s data transfer rate is possible.
Flexibility

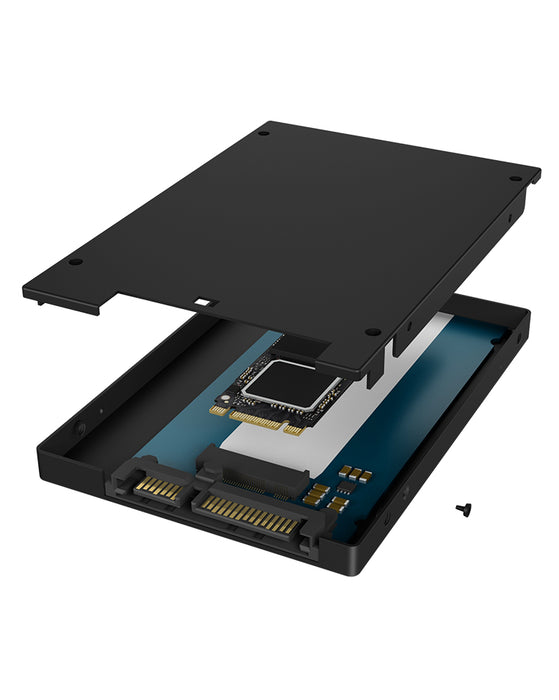

The four fixtures for all common M.2 lengths ensure maximum flexibility, even when installing a shorter M.2 SSD. The M.2 sizes 22x 30, 42, 60 and 80 mm are possible with the IB-M2S253 and are very easy to install.
High-quality workmanship

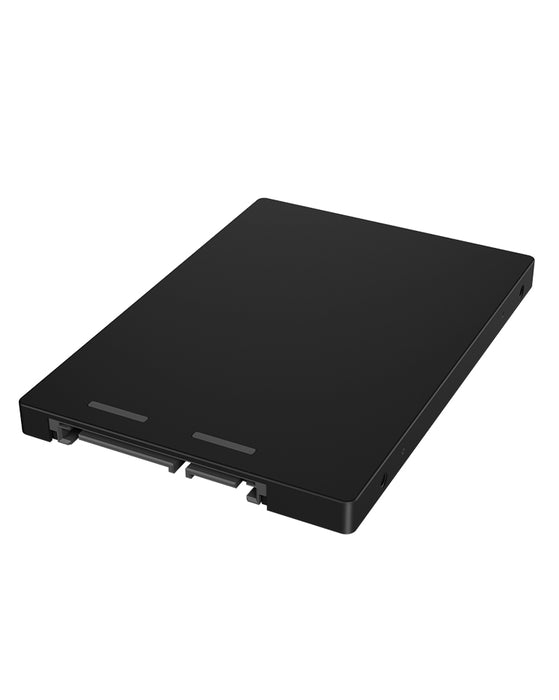

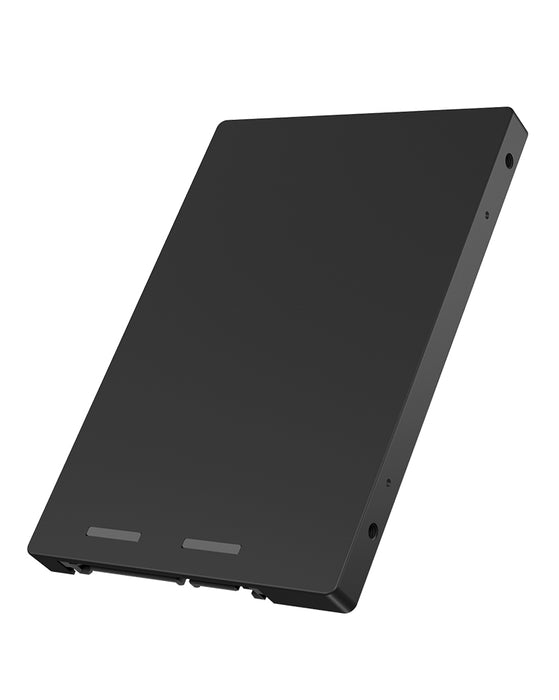

The adapter features a plain black colour and the usual dimensions of a standard 2.5'' SSD. Made of
aluminium, it is particularly robust and durable. With 2.5'', a height of 7 mm and the usual drill holes for installation, the adapter ensures 100% 2.5'' comfort.
Storage
Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
Supported storage drive heights: 22 mm
Supported storage drive lengths: 30,42,60,80 mm
Design
Product type: SSD enclosure
Product colour: Black
Material: Aluminium
Performance
Data transfer rate: 6 Gbit/s
System requirements
Feature: Windows operating systems supported
Weight & dimensions
Width: 100 mm
Depth: 70 mm
Height: 7 mm
Weight: 46 g
Package width: 27 mm
Package depth: 105 mm
Package height: 200 mm
Package weight: 111 g
Packaging content
Feature: Screws included
Feature: Manual
Logistics data
Master (outer) case width: 500 mm
Master (outer) case length: 220 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 5.1 kg
Products per master (outer) case: 40 pc(s)
ICY BOX IB-M2S253. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Data transfer rate: 6 Gbit/s. Product colour: Black
ICY BOX
MBR CODE - IB-M2S253
EAN - 4250078172611
