Power
Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Ports & interfaces

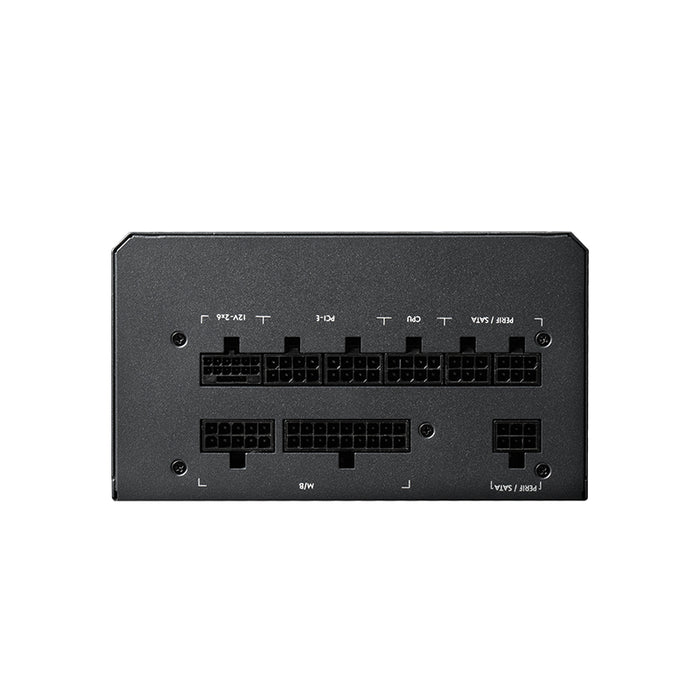

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 6
SATA power cable length: 400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: ATX Power connector (24-pin)
Feature: ATX power connector (20+4 pin)

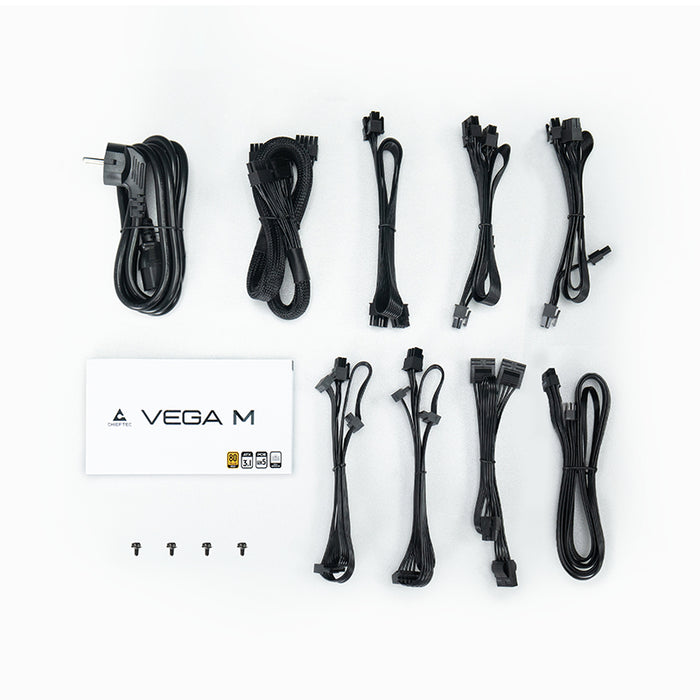

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Certificates
Certification: 80PLUS Gold
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 85 mm
Weight: 1.96 kg
Packaging data
Package weight: 2.43 kg

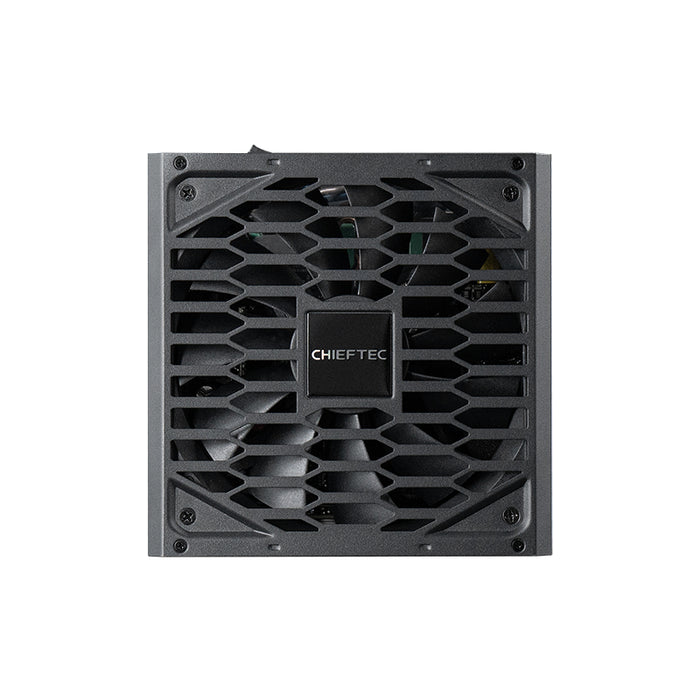

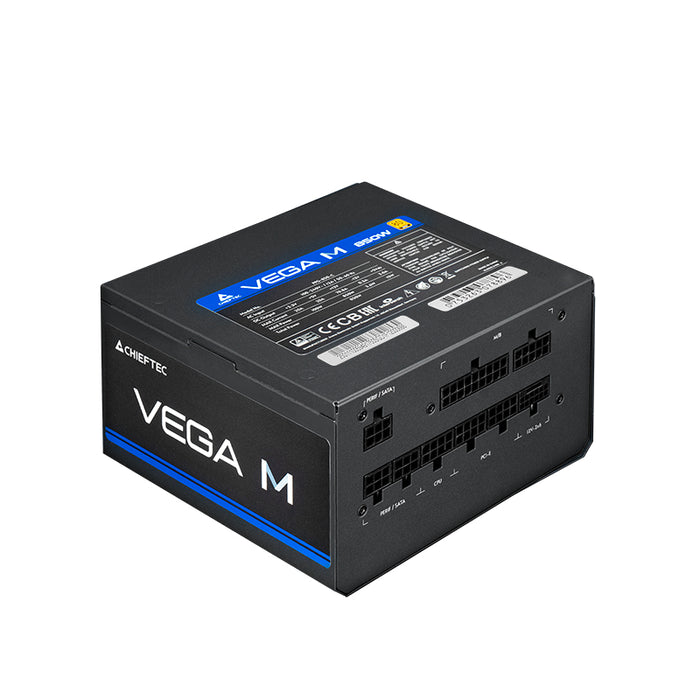

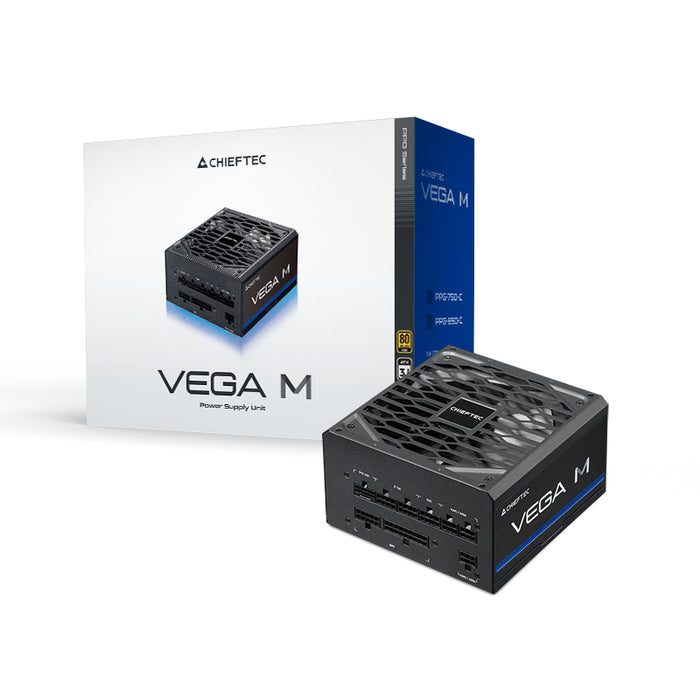

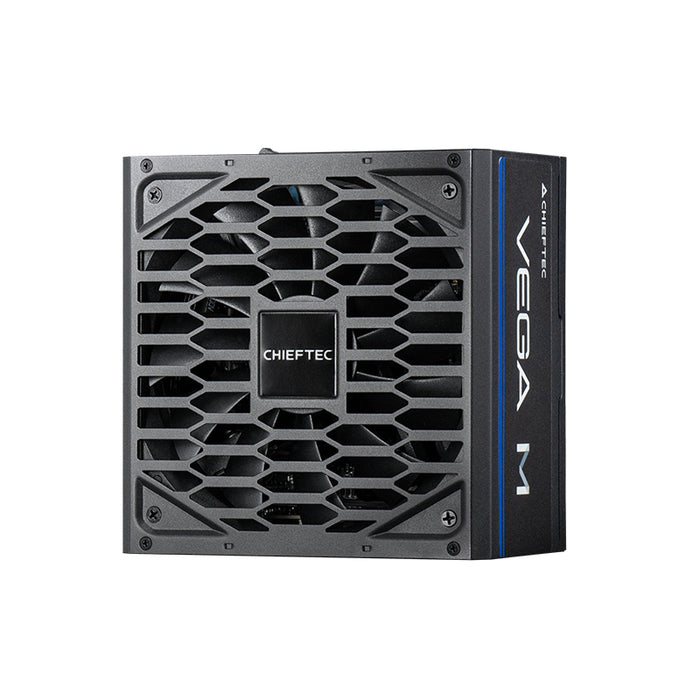

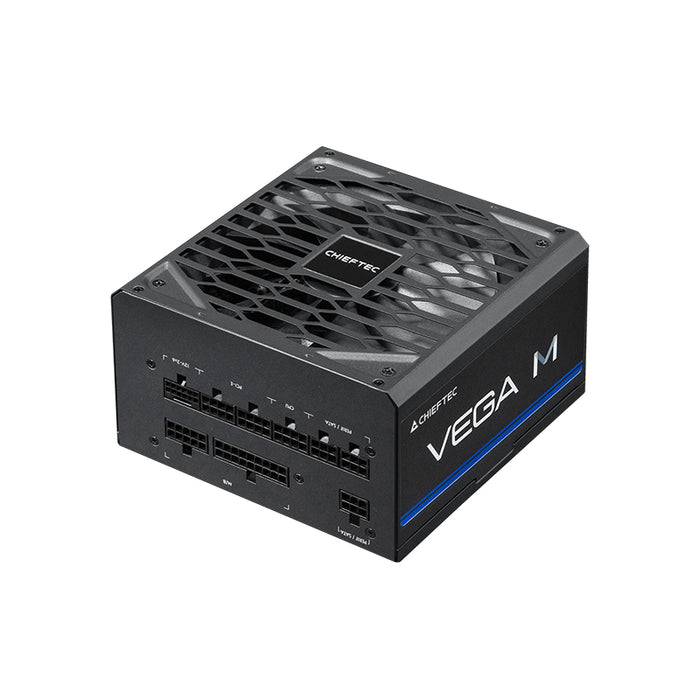

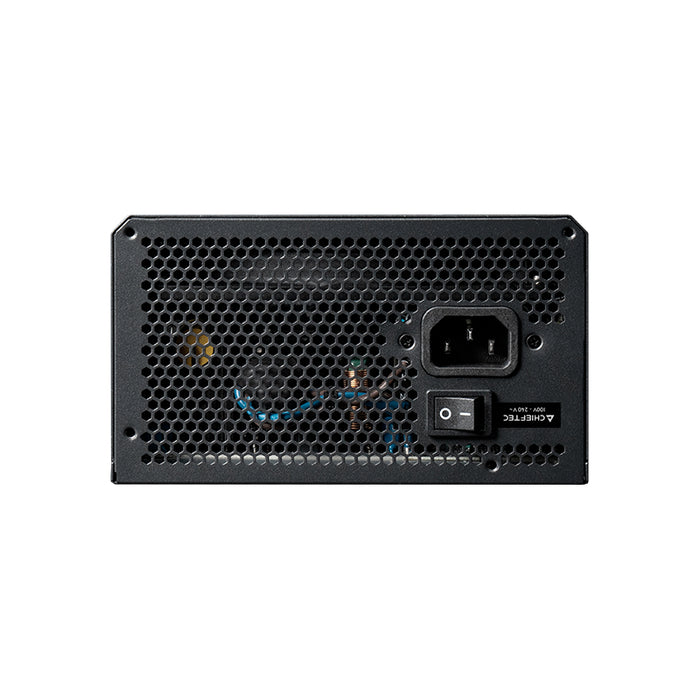

Chieftec Vega PPG-750-C. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
Chieftec
MBR CODE - PPG-750-C
EAN - 0753263078896
Total power | 750 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 100 W |
Combined power (+5V) | 100 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V1) | 62.5 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 60 cm |
Number of SATA power connectors | 6 |
SATA power cable length | 400 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
Peripheral (Molex) power cable length | 400 mm |
EPS power connector (8-pin) | Yes |
EPS power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
PCI Express power connectors (12+4 pin) | 1 |
PCI Express power connectors (12+4 pin) cable length | 600 mm |
CPU power connector (4+4 pin) | Yes |
CPU power cable length | 65 cm |
ATX Power connector (24-pin) | Yes |
ATX power connector (20+4 pin) | Yes |
Cabling type | Fully-Modular |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX version | 3.1 |
Bearing technology | FDB |
Product colour | Black |
Cooling type | Active |
Fan diameter | 13.5 cm |
Illumination | No |
Certification | 80PLUS Gold |
Width | 150 mm |
Depth | 150 mm |
Height | 85 mm |
Weight | 1.96 kg |
Package weight | 2.43 kg |
