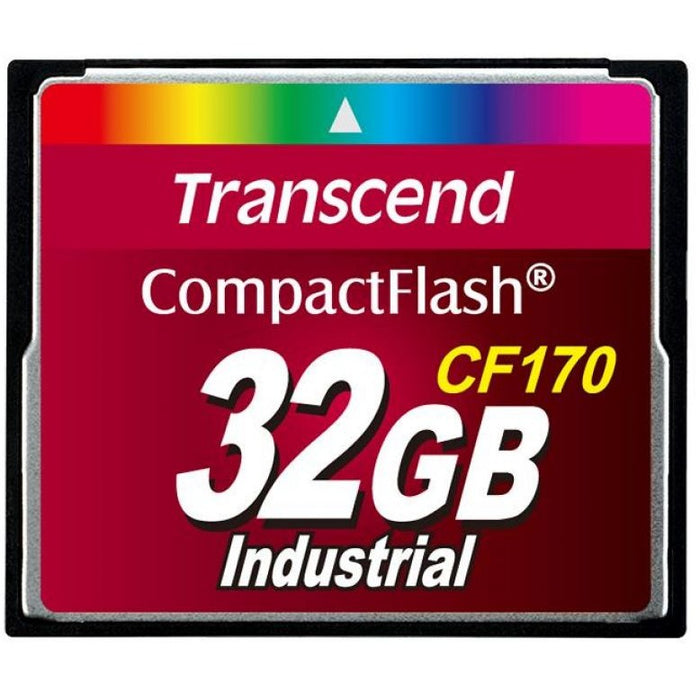

Boasting high-speed data transfer rates and extra large storage space, Transcend's industrial CF170 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications with demanding performance and capacity requirements. Thanks to their use of StaticDataRefresh and EarlyRetirement technology, the CF170 CF cards are able to correct data errors, maintain data integrity, and extend the lifespan of their flash memory cells.
- Operation Modes: PC Card Memory Mode, PC Card IO Mode and True IDE Mode
- CompactFlash Specification V6.0 compliant
- Built-in advanced ECC and wear-leveling algorithm
- Excellent temperature flexibility, shock and vibration resistant
Memory
Capacity: 32 GB
Flash card type: CompactFlash
Read speed: 90 MB/s
Write speed: 60 MB/s
Internal memory type: MLC
Features
Protection features: Heat resistant, Shock resistant
Mean time between failures (MTBF): 1000000 h
Certification: CE, FCC, BSMI
Power
Power consumption (write): 180.2 mA
Power consumption (read): 205.4 mA
Memory voltage: 3.3,5 V
Operational conditions
Operating temperature (T-T): -25 - 85 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating shock: 1500 G
Vibration resistance: 20 G
Weight & dimensions
Width: 42.8 mm
Depth: 3.3 mm
Height: 36.4 mm
Packaging data
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85235190
Transcend CF170. Capacity: 32 GB, Flash card type: CompactFlash, Internal memory type: MLC, Read speed: 90 MB/s, Write speed: 60 MB/s. Protection features: Heat resistant, Shock resistant
Transcend
MBR CODE - TS32GCF170
EAN - 0760557825074
